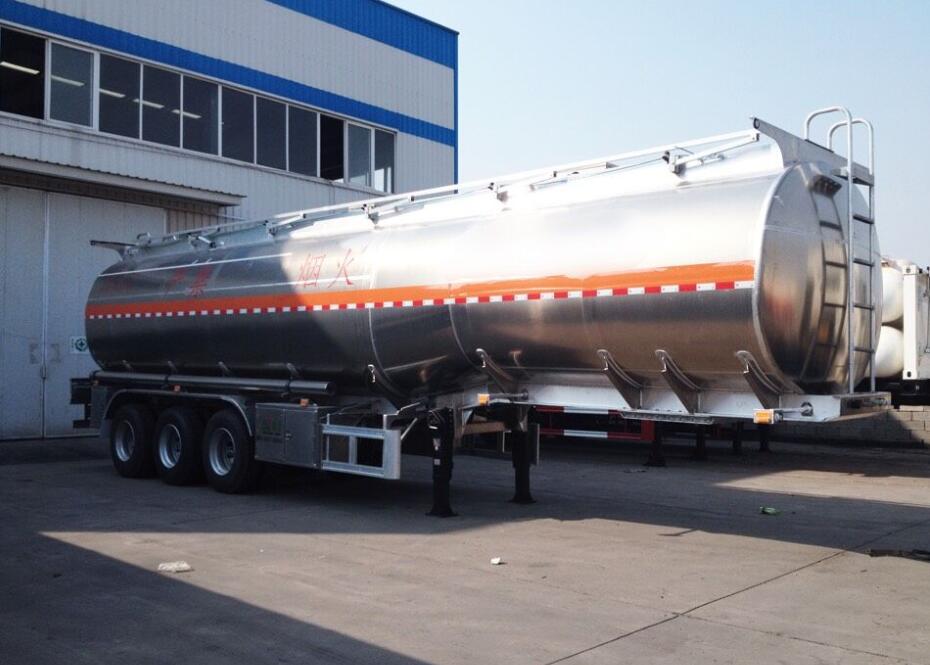

Aluminum Fuel Tank Trailer
Aluminum Fuel Tank Trailer
| DIMENSIONS | |
| Tare Weight | 5500kg |
| Payload | 42 m3 fuel |
| Length | 12990mm |
| Width | 2600mm |
| Height | 3060mm |
| General Information | |
| Description | Aluminum Refined Tanker, DOT 406 and SASO requirements |
| Commodity | Fuel and other refined products |
| Measurements | |
| Capacity | Shell Full Capacity 44,200 liters, +5% Expansion as Aramco requirements. Nominal Capacity 42,000liters |
| Tank | |
| Material | Aluminum 5454-H32 in body and 5454- H0 in heads |
| Shape | Cylindrical |
| Baffles | 4 Aluminum 5454-H0 |
| Compartments | One |
| Exterior Ring | 11 External Rolled Rings |
| Chassis | |
| Sub Chassis | Aluminum |
| Landing gear | One pair of JOST brand landing gear |
| Tank Fittings | |
| Equipment | Pneumatic bottom Loading system Accordance to API RP 1004 |
| Manholes | (2) 20” with Diameter installed. (1) The center and (1) in the rear of the tank manufacturing in aluminum with cover box and sealing tabs to manholes box |
| Venting Valve | (2) Forth Vale Brand installed in each manhole cover |
| Vapor Recovery | (1) 4” piping to the Valves cabinet right side of the tanker |
| Overfill system | (2) Scully overfill system with optic sensor |
| Emergency Valve | (2) 6”X4” pneumatic |
| Load and Unload Valve | (2) Civacon with Civacon 6” to 4” reduction and cap fitted API standards |
| Vapor Recovery Valve | (1) Civacon with cap |
| Drain | (2) 1/2 ball Valves installed at the bottom of the tanker |
| Accessories | |
| Access Ladder | Rear,Center,fabricated in aluminum |
| Walkway | Anti-Slip Between flashing rails, fabricated in aluminum |
| Extinguisher Holder | Two |
| Spare wheel Carrier | One |
| Lifting Lugs | 2 Lifting lugs at the top of the tank |
| Mud Flaps | Four mud flaps two at front and two at the back, printed with the brands Tytal |
| Safety Line | Safety line both sides with covered cable1/4” between manholes |
| Top protection | Rollover protection on the top of the tanker, between manholes |
| Placard Holder | Made of Aluminum with back plate as DOT requirement |
| Conspicuity tape | DOT requirements |
| Tool cabinet | Installed at curbside of the tanker |
| Test | |
| Design Pressure | 15 PSI Internal |
| Hermetic test | Certified hermetic and pneumatic testing provided with the tank |
| Warranty | One Year limited warranty |
