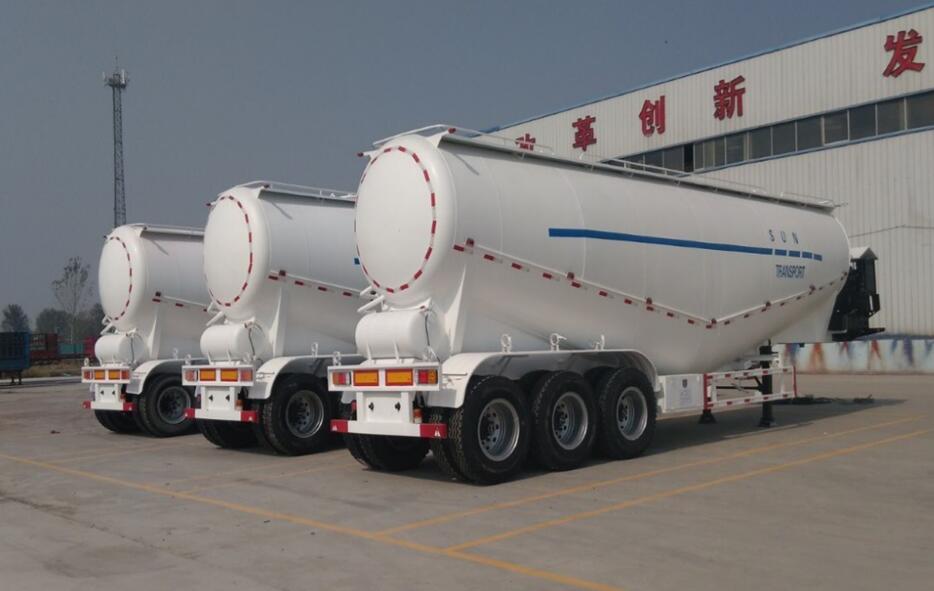

70 M3 Bulk Cement Tank Trailer

70 M3 Bulk Cement Tank Trailer

Item Parts Name Specification
1 Overall Dimension L12000xW2500xH3990 mm
2 Tank Dimension L11300x2500x3416 mm
3 Loading Capacity 75 Tons = 63 M3 Bulk Portland Cement
4 Tank body standard Dish head 6mm,Barrel 5mm thickness,Q345 material
5 Tank Cylinder Q345 Carbon Steel
6 Trailer Chassis Q345B Carbon Steel
  Manholes Three units Ф500mm manholes
7 Air Compressor Bohai 14 M3 Double Cylinder Air Compressor, one set of 6 meter discharge hose, Holes for battery box and dishcharge of compressor machine oil, Air outletФ6’inch.
8 Diesel Engine Weichai Huafeng brand 4102 Engine, One Cover for engine and compressor, with cover
9 Unloading Time Approx. 55 Minutes
10 Axle 3 Units Of Fuwa Brand 20 Ton B2 Axle
11 Suspension One Set Of Tri-Axle Heavy-Duty Mechanical Suspension
12 Leaf Spring 6 Sets 10 Pcs 13X20mm Leaf Spring
13 Kingpin 3.5’ Inch Standard Bolted-in JOST Kingpin
14 Landing Gear Two Speed Manual 28 Ton JOST Landing Gear
15 Wheel Rim 12 Units 8.5-24 Wheel Rim
16 Tyres 12Units 12.00R24 Long March brand radial tyre
17 Pneumatic Braking System One Units Of Wabco Re 6 Relay Valve (Or Equivalent); Six Units Of T30/30 Spring Brake Chamber; Two Units Of 45 L Air Tank; Two Units Of Standard Copper Air-Connector.
18 Electrical  System One Unit Of Jaeger Poway(Or Equivalent),24V 7-Pin ISO 1185 Standard Socket; Tail Lamp With Turn Signal, Brake Light & Reflector,6+6 (total 12) units of Side Lamps with covered wire by pipe, One back side rotary warning light. One Set Of 6-Core Standard Cable.
19 Painting Sand Blasting Processing On Rust - Proof Protection. One Coat Of Anticorrosive Primer, Two Coats Of Finish Urethane Paint, Color As white with SUN TRANSPORT company logo, white color with blue line as per our conversation.
20 Tool box and water tank With one standard tool box and 1.3XФ0.65m water tank with tap
Annex Spare parts
1 Speed indicator- air compressor 1 pcs
2 Diesel engine spare parts(gasket, filter on set of each)  3 pcs
3 Belt for engine 1 pcs
4 Belts for compressor 5 pcs
5 Air pressure gauge, 1 pcs
6 Ф125 clutch(butterfly) 1 pcs
7 Manhole seals 4 pcs
8 5 inch tube bundle 2 pcs
9 Air filter for compressor 2 pcs
10 Switch for external source of gas 1pcs
11 Ф50 ball valve for external source of gas  1pcs
12 Fire Extinguisher stand 2 pcs
13 Break air pipe 2+2 pcs
14 Middle equalizer 1 pcs
15 Nut 10 pcs for wheel rim
16 U shape bolt 6 pcs
