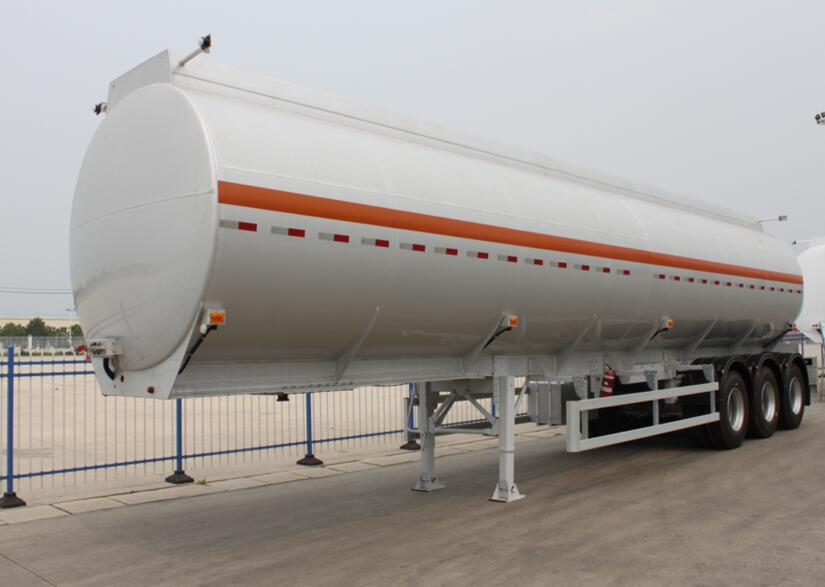

Cooking Oil Stainless Tank Trailer
Cooking Oil Stainless Tank Trailer
| Specifications | |
| Commodity name | Stainless Fuel Tank Semi-Trailer |
| Length | 12290mm |
| Width | 2500mm |
| Height | 3650mm |
| Tare Wight | 6800kg |
| Tanker Loading Capacity | 40 m3 fuel |
| Payload | 33,200kg |
| Total weight | 40,000kg |
| Main Beams | Heavy Duty And Extra Durability Designed; Opting For High Tensile Steel Q345B Welded By Automatic Submerged-Arc Processes, |
| Axle | Three Units Of 13 Ton Fuwa Axle |
| Suspension type | One Couple of Tri- axle mechanical Suspension |
| Landing Gear | Two Speed Manual Operation 28 Ton Landing Gear |
| King Pin | One Unit Of 3.5’ SEA Standard bolted King Pin |
| Wheel Rim | 12 units of 8.0-20 Wheel Rim |
| Tyre | 12 units of 11R20 Radial Tyres |
| Specifications for Tanker | |
| Tanker Material | 304 Stainless Material |
| Dish head | Dish head 5 mm thickness 304 stainless plate |
| Tank cylinder | Tank cylinder 5mm thickness |
| Tanker Working Pressure | Normal pressure |
| Manhole Cover | 2 Units Of 500mm dia.Manhole (C801-560 Model) Fixed On Top Of Tank, |
| Unloading Valve | 2 Sets of DN80 Fixed At Right Side Of Tank Body, |
| Labeling System | Oil Type Indication |
| Anti-Static Electricity System | Pulling, Wire Carrier, Sheet Copper ( 7 Sheet-Standard Layout ) |
| Other Parts | |
| Ladder | One Unit At Rear Of The Tank |
| Guard On Top Of Tank | Zine Galvanized Guard Net |
| Oil Hose Box | Single Hole Tube, One Unit On Each Side |
| Oil Hose | 2 Unit,3’ X 6mm Size In Black Rubber |
| Side Guard | Cross bar-Structured |
| Rear Bottom Guard | Fixed Type |
| Work Tank Deck | Box Type |
| Fire Extinguisher Box | Two Units At The Back Of Each Side |
| Mud Guard | Steel Structure In Trapezoid Form |
| Pneumatic Braking System |
A System With Emergency Brake And Parking Brake; Dual Line - Air Brake, Piggyback Spring On All Axles; Two Units Of WABCO RE 4 Relay Valve(or equivalent); Four Units Of T30/30 Spring Brake Chamber; Two Units Of T30 Brake Chamber, Two Units Of 40L Air Tanks; Two Units Of Standard Copper Air-Connector. |
| Electrical System | One Unit of JAEGER POWAY(or equivalent) ,24V 7-Pin ISO 1185 Standard Socket; Tail Lamp With Turn Signal, Brake Light & Reflector , Side Lamp Etc. One Set Of 6-Core Standard Cable. |
| Painting |
Sand Blasting Processing On Rust – Proof Protection.. One Coat Of Anticorrosive Primer Two Coats Of Finish Urethane Paint Color As Customer Choice |
| Accessory | One Tool Box With A Set Of Standard Trailer Tool |
