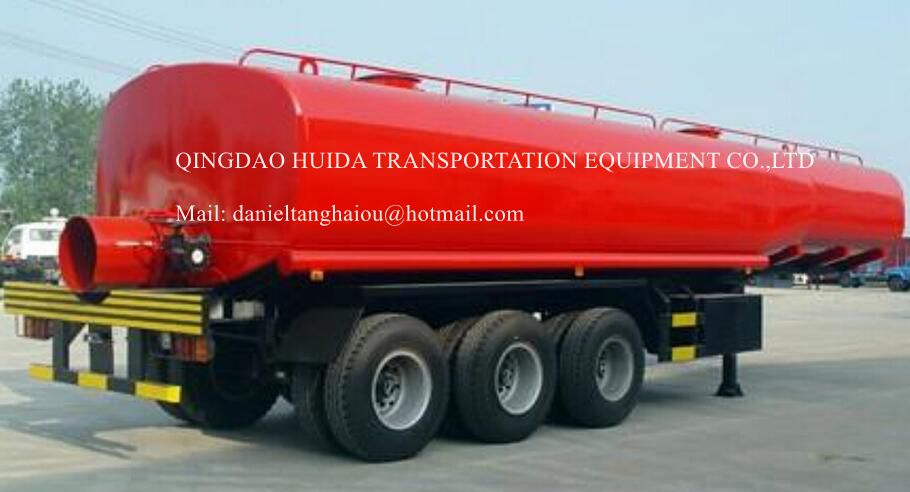

3 Axle Water Tank Trailer
3 Axle Water Tank Trailer
| DIMENSIONS | |
| Tare Weight | 9500kg |
| Payload | 40000kg |
| Total Weight | 49500kg |
| Overall Length | 12000mm |
| Overall Width | 2490mm |
| Overall Height | 3650mm |
| Wheel Track | 1840mm |
| Wheelbase | 6057mm+1310mm+1310mm |
| STANDARD SPECIFICATION | |
| Tank Body Standards | |
| Tank Capacity | 40 CBM Water |
| Tank Material | Carbon Steel |
| Tank Body | Dish Head Thickness 6mm,Cylinder Thickness 5mm |
| Compartment Number | 4 Compartments |
| Manhole Cover | 3 Units Of 500mm / Carbon Steel Manhole (C801-560 Model) Fixed On Top Of Tank |
| Unloading Valve | 1 Set Of DN80 Fixed At back Side Of Tank, |
| Labeling System | Liquid Type Indication |
| Water Hose Box | Single Hole On back Side |
| Side Guard | Cross Bar-Structured |
| Rear Bottom Guard | Fixed Type |
| Chassis Standards | |
| Main Frame And | Heavy Duty And Extra Durability Designed; High Tensile Steel Q345B,Welded By Automatic Submerged-Arc Processes |
| Axle | Three Units Of 13 Ton FUWA Axle |
| Suspension | One Couple Of Tri-Axle Mechanical Suspension |
| Leaf Spring | Six Sets Of 10-Pieces 13x90mm Leaf Spring |
| King Pin | One Unit Of 2`` SAE Standard Welded Kingpin |
| Landing Gear | Two-Speed , Manual Operating, Heavy Duty Landing Gear |
| Wheel Rim | Thirteen Units Of 9.0-22.5 Wheel Rim |
| Tyre | Thirteen units of 12R22.5 tubeless Radial Tyres |
| Spare Wheel Carrier | One Set Of Spare Wheel Carrier Including A Riser. |
| Pneumatic Braking System | A System With Emergency Brake And Parking Brake; Dual Line - Air Brake, Piggyback Spring On All Axles; One Units Of WABCO (Or Equivalent) RE 6 Relay Valve; Six Units Of T30/30 Spring Brake Chamber; Two Units Of 45L Air Tanks; Two Units Of Standard Copper Air-Connector. |
| Electrical System | One Unit Of JAEGER POWAY(Or Equivalent) ,24V 7-Pin ISO 1185 Standard Socket; Tail Lamp With Turn Signal, Brake Light & Reflector, Side Lamp Etc. One Set Of 6-Core Standard Cable. |
| Painting | Sand Blasting Processing On Rust – Proof Protection.. One Coat Of Anticorrosive Primer Two Coats Of Finish Urethane Paint Color As Customer Choice |
| Accessory | Two Tool Box With A Set Of Standard Trailer Tool |
