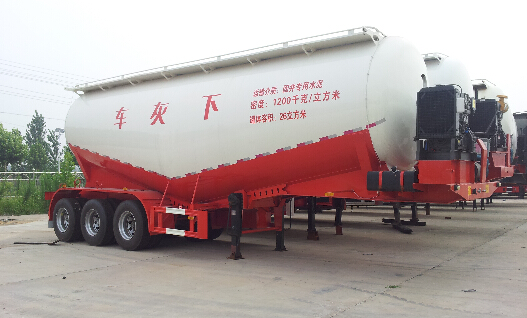

V Shape- 30 m3 Small Capacity Cement tank
3 AXLE 30 M3 BULK CEMENT TANK SEMI TRAILER
| ITEM | PARTS NAME | SPECIFICATION |
| 1 | LOADING CAPACITY | 30 M3 BULK PORTLAND CEMENT |
| 2 | DISH HEAD | Φ 2200x0.5 /Q345 |
| 3 | TANK BODY CYLINDER | Q345 CARBON STEEL @5MM THICKNESS |
| 4 | TRAILER CHASSIS | Q345 |
| 5 | AXLE | 3 UNITS OF FUWA 13 TON AXLE WITH MECHANICAL SUSPENSION |
| 6 | SUSPENSION | ONE UNIT TRI-AXLE MECHANICAL SUSPENSION |
| 7 | LEAF SPRING | 6 SETS 13 PCS 13X90MM LEAF SPRINGS |
| 8 | KINGPIN | 3.5 INCH STANDARD BOLTED KINGPIN |
| 9 | LANDIN GEAR | TWO SPEED MANUAL 28 TON LANDING GEAR |
| 10 | WHEEL RIM | 12 UNITS 8.5-20 WHEEL RIM |
| 11 | TYRES | 12 UNITS 12.00R20 RADIAL TYRES |
| 12 | PNEUMATIC BRAKING SYSTEM | TWO UNITS OF WABCO RE 6 RELAY VALVE（OR EQUIVALENT）;SIX UNITS OF T30/30 SPRING BRAKE AIR CHAMBER; TWO UNITS OF 40L AIR TANK; TWO UNITS OF STANDARD COPPER AIR-CONNECTOR. |
| 13 | ELECTRICAL SYSTEM | ONE UNIT OF JAEGER POWAY（OR EQUIVALENT）,12 V 7-PIN ISO 1185 STANDARD SOCKET;TAIL LAMP WITH TURN SIGNAL, BRAKE LIGHT & REFLECTOR, SIDE LAMP ETC.ONE SET OF 6-CORE STANDARD CABLE. |
| 14 | PAINTING | SAND BLASTING PROCESSING ON RUST – PROOF PROTECTION.ONE COAT OF ANTICORROSIVE PRIMER,TWO COATS OF FINISH URETHANE PAINT, COLOR AS CUSTOMER CHOICE |
| 15 | MATERIAL LOADING / UNLOADING | BOHAI BRAND-12 M3/M AIRCOMPRESSOR, STANDARD KOFA BRAND 44KW DIESEL ENGINE, |
| 16 | OTHER PARTS | ALONG WITH OUR STANDRARD ACCESSORIES |
