Fuel/Chemical Tank Truck

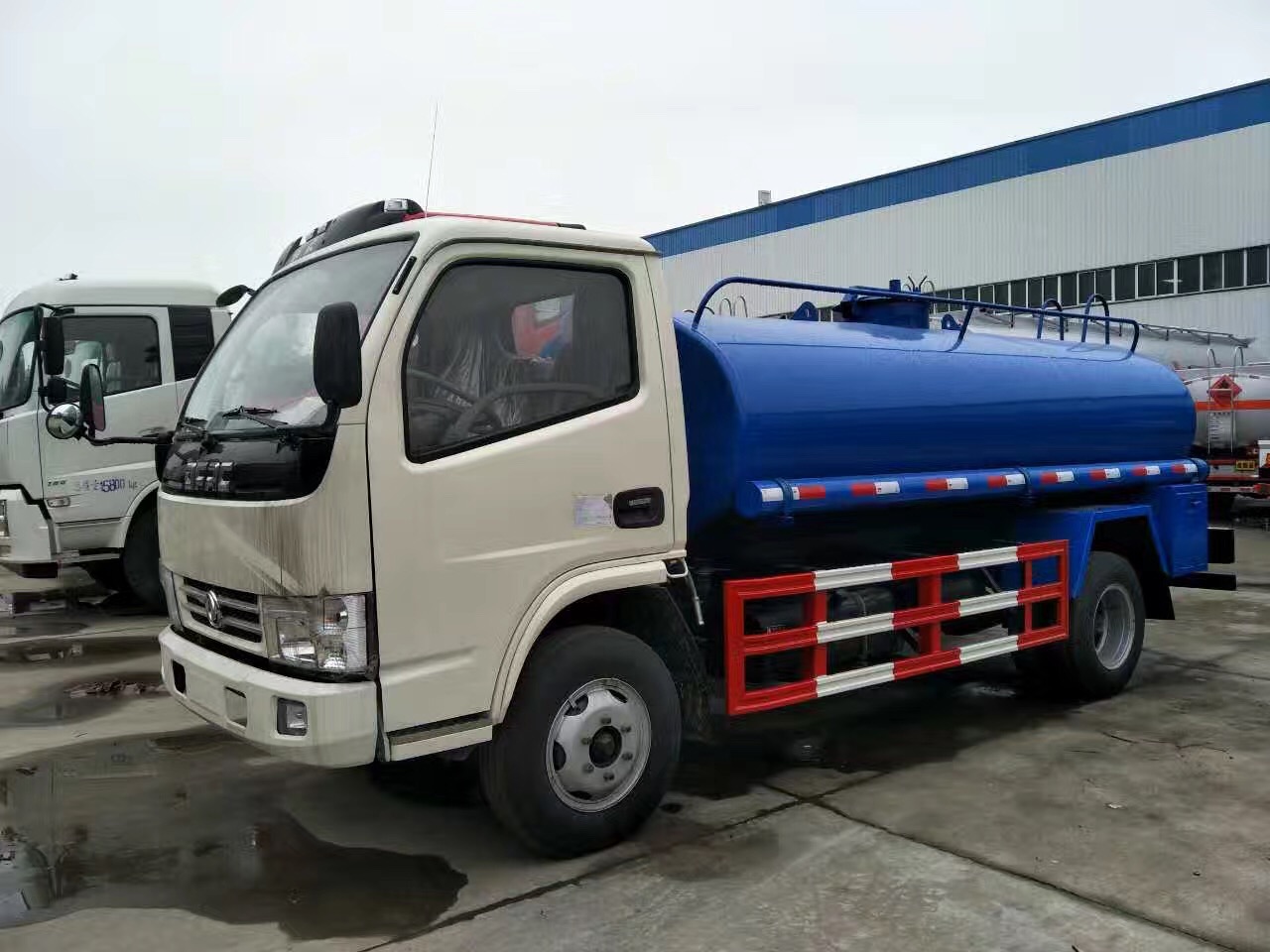

Oil refueler tank truck

Oil refueler tank truck

Item unit parameters
Vehicle model   Refuel Tank Truck
Chassis model   EQ1060TJ20D3
Overall dimensions mm 5990×1960×2400
 Fact cubage L 5000
Mass in working order kg Appro×3365
Body internal dimensions mm 3100×1750×1150
Wheel base mm 3300
F/R track base mm 1506/1466
Approach/departure angle ° 18/12
Exhaust/kw ml/kw 3856/70
Max speed km/h 90
Tire specification 7.00-16 Engine type CY4102-C3F
Traction system 4×2 transmission 5-speed with over drive
Number of axles 2 Electric system 12v
Operation control system Electrically hydraulic control Allowable passengers in cab 3
Equipment Meterial: 4mm carbon steel. can choose flow meter, tanker piston and bobbin disk
Tank can be separated to several unattached small tanks to fill different fuels
Engine Dongfeng Chaoyang diesel engine,95hp
