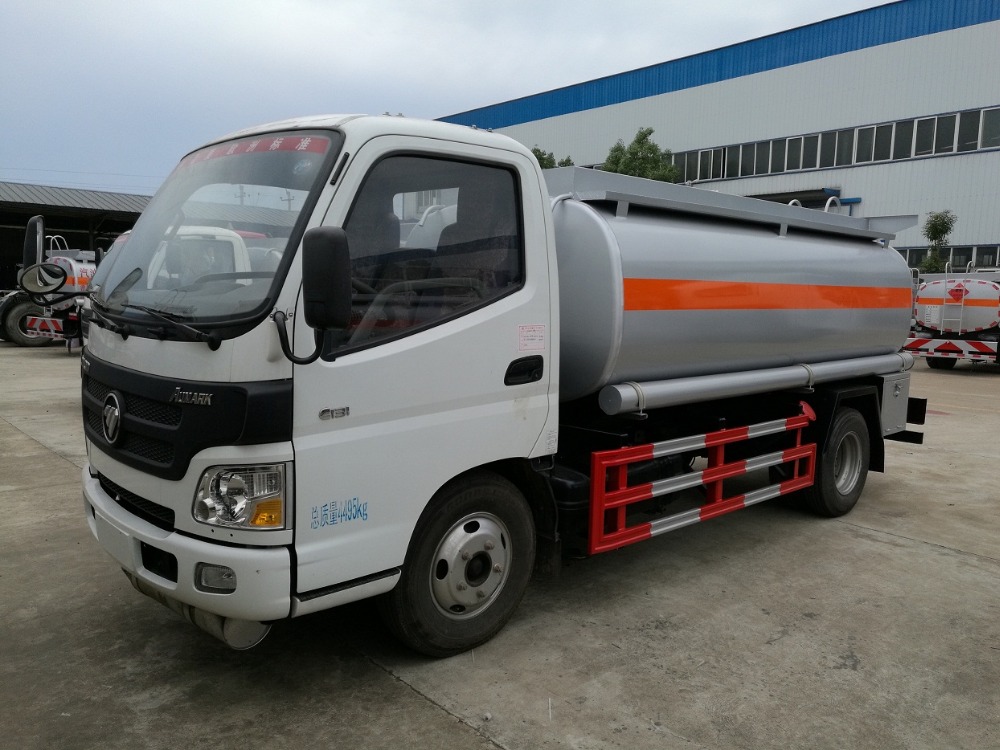

Fuel Tank Truck
Fuel Tank Truck
| Fuel Tank Truck | ||
| Tanker capacity | 4000liters - 8000 liters ; | |
| Fuel type | gasoline, density: 700kg/m3 | |
| Main parts |
1. Gear Oil Pump 2. Flow meter (Option: set back to zero) 3. Oil flow with pressure 4. Oil flow automatically 5. Earth conductor 6. Oil flow hose 7. Fuel gun for option 8. Reflective belt for option |
|
| Truck Chassis | 4X2 light Truck Chassis | |
| Wheel base (mm) | 3360mm | |
| Dimension (m) | 5.995×2.05×2.48 | |
| Front / Rear overhang (mm) | 1160/1475(mm) | |
| Curb Weight | 4170kg | |
| Loading Capacity | 3770kg | |
| Max speed | 80 km/h -85km/h | |
| Engine | ||
| Engine model |
4102QBZ, 80kw/109HP, Diesel, Euro4; 3760CC, Optional: 83/85KW |
|
| Transmission | ||
| Transmission model | WLY series; | |
| Front gear | 6 | |
| Reverse gear | 1 | |
| Tire | ||
| Number of Tire | 10 | |
| Tire type | 7.50R16 | |
