Fuel/Chemical Tank Truck

LPG Tank Truck

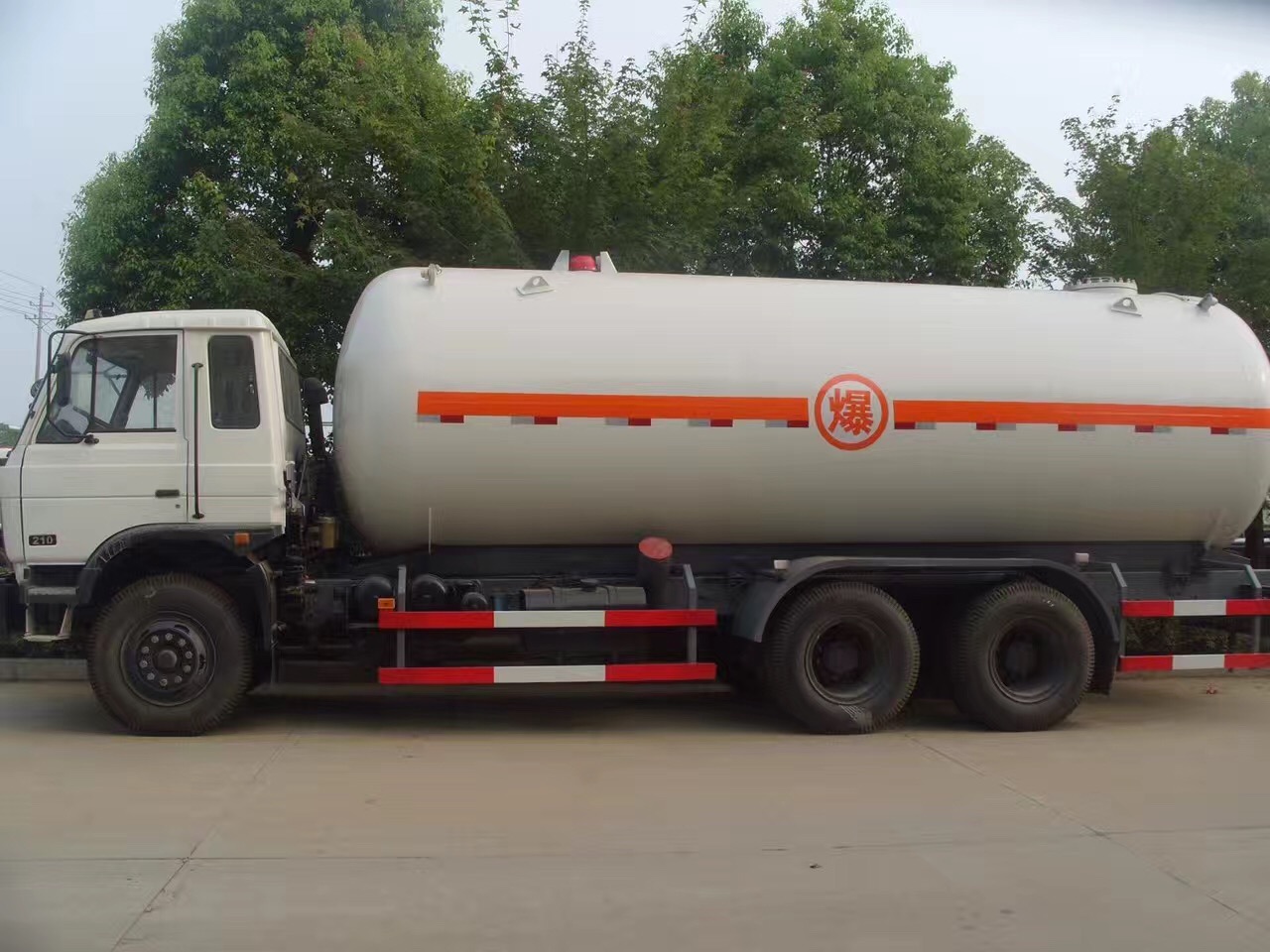

                                                                 LPG Tank Truck

Item No. Parameters
Overall Dimension 10590x2495x3350 mm
Driving Model Left hand drive
Gross Vehicle Weight 25000 kg
Tare Weight 9200 kg
Payload 15800kg
Wheel Base 4600+1350 mm
Front/rear Tread 2022/1830 mm
Approach/Departure Angle 16/12 degree
Front Axle 7000kg
Rear Axle ST16 16000*2 kg
Engine WD615.69,4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inner cooling
Engine horsepower 336 HP EUROII
Displacement 9726mL (Diesel)
Max Driving Speed 90 km/h
Gearbox HW19710CL
Cabin HW76 standard cabin,2~3 Passenger allowed, with Air Conditioner
Tire 12R22.5 (11 pieces)
LPG tank
Volume: 24cbm
Tank material: Q345R
Tank diameter: 2050mm
Tank thickness: 10mm
Tank length: 7644mm
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa
Accessory
Level Gauge Manuel Switch Operation Type
Safety Valve 1
Tool and Valve Box 1
Filling Machine  1,Heifei Jinda Brand, computer control, receipt provided
Filling Gun  20M,with one filling gun(suitable for 50kg LPG cylinder)
Pump 1
Thermometer 1
Pressure Gauge 1
Emergency Valve 1
Fender Steel
Fire Extinguisher 2
Anti-static Tape 1
Standard
Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels
