Engineering Truck

Aerial Work Platform Truck

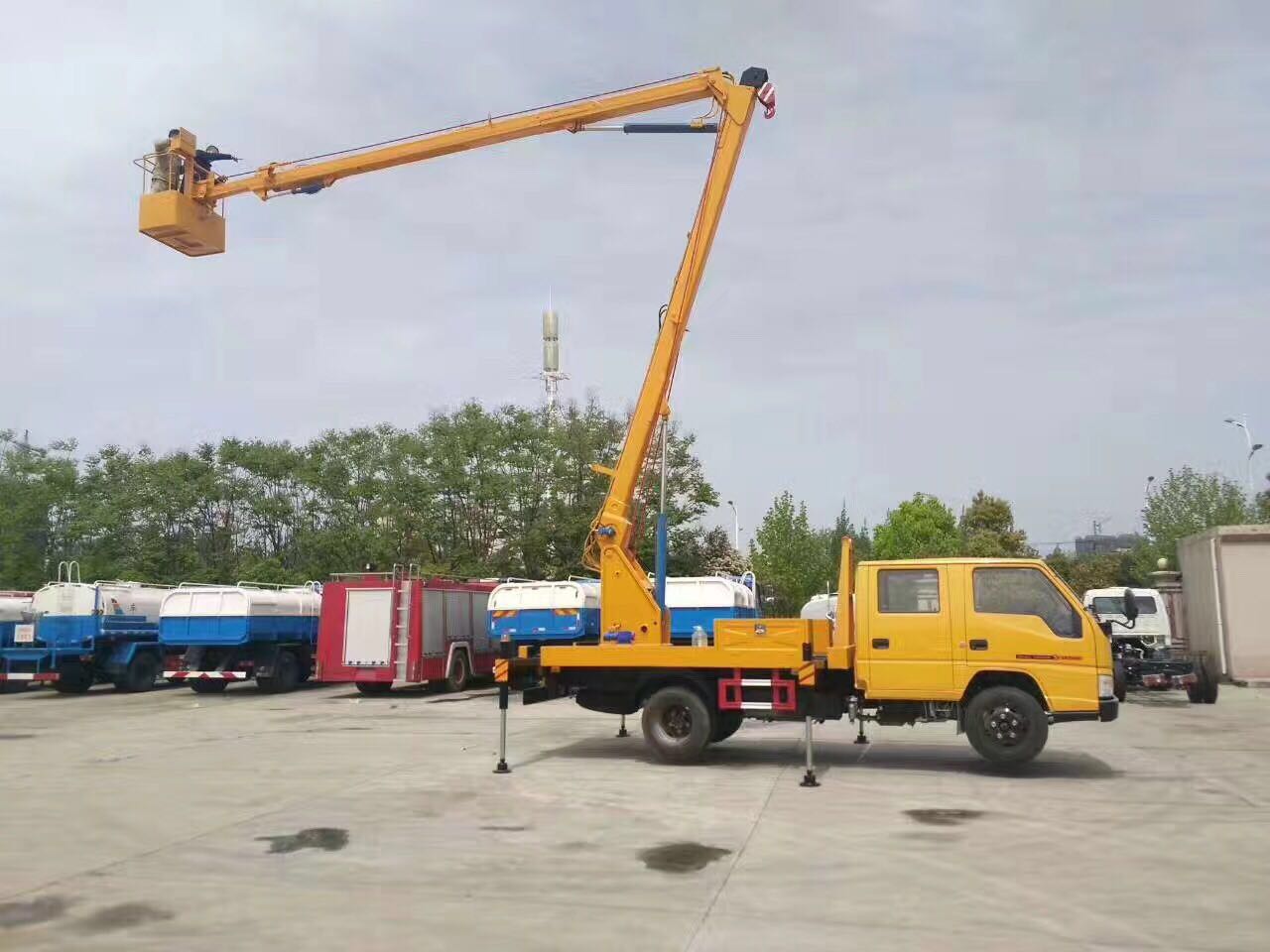

Aerial Work Platform Truck

Item unit parameters
Vehicle model   Aerial work platform truck
Overall dimensions mm 9200*2470*3610
Total weight   9900kg
Tare weight 9705kg
Rated loading of the bucket 200kg
Lifting weight of the hook 1000kg
Wheel base 4700mm
F/R track base 1900/1800mm
Approach/departure angle ° 34/18
Max speed km/h 90
Engine model Engine type Emission(ml) Horsepower(kw/hp)
B170-33 diesel 5900 125/170
Traction system 4*2 Tire specification 9.00-20
Number of axles 2 Leaf spring 8/11+8
Brake system instruction Spring brake Cab passengers 3
Other parameters 1.working height: 18meters
2.max working range:8.3meters
3.rated load of the working bucket:200kg
4.rotated angle:3600
5.rotated speed:0-2r/min
6.rated lifting of the hook: 1000kg
7.max lifting height: 18.8meters(optional)
8.No. of the outriggers: 4
9.No. of the folding working arms: 3
Warranty 12 months from the date of supply
certificates 3C, ISO9001-2000,
