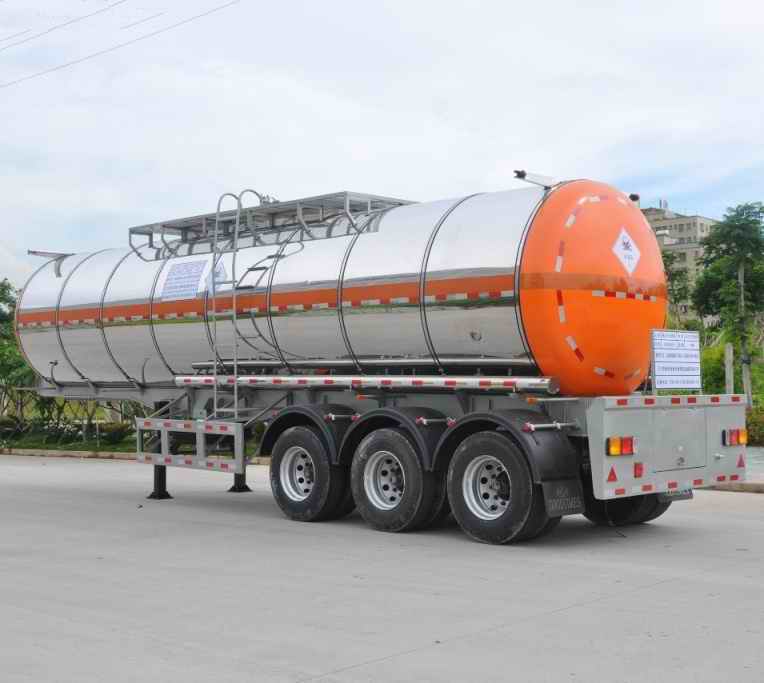

Thermal Insulation Tank Semi Trailer
34 M3 Tri-Axle Insulation Tank Semi-Trailer Specification
DIMENSIONS | |
Tare Weight | 8500kg |
Payload | 35000kg |
Total Weight | 43500kg |
Overall Length | 12000mm |
Overall Width | 2500mm |
Overall Height | 3413mm |
Wheel Track | 1840mm |
Wheel base | 6500+1300+1300mm |
TANK PART SPECIFICATION | |
Tank Material | Stainless steel 304 |
Tank Loading Capacity | 34 m3 |
Tank Cylinder &Bulk head | 5mm thickness tank cylinder and bulk head |
Tank shape | Round end |
Design Pressure | Normal pressure |
Manhole Cover | 2 Units Of 500mm dia./ Carbon Manhole (C801-560 Model) Fixed On Top Of Tank, 4 Compartments |
Unloading Valve | 2 Sets of DN80 Fixed At Right Side Of Tank Body, |
Labeling System | Oil Type Indication |
Anti-Static Electricity System | Pulling, Wire Carrier, Sheet Copper ( 7 Sheet-Standard Layout ) |
Labeling System | Oil Type Indication |
Inside Jacket | 1/3 of the tank circumference in stainless steel plates for circulating hot water or steam to facilitate discharge of palm oil |
Thermal insulation polyurethane | With thermal insulation polyurethane high density of 40kg /cubic meter, thickness 72mm |
Unloading way | Unloading with natural gravity outlet butterfly valve, manual aperture diameter of 3’’stainless steel and relief valve diameter as 1 1/2’’ |
The out mirror plate | Lined with thick stainless steel attached to the tank by means of belts fitted with regulators back and front cover bolts in stainless steel or reinforced fiberglass |
OTHER PARTS | |
Ladder | One Unit At Front Of The Tank |
Guard On Top Of Tank | Zine Galvanized Guard Net |
Oil Hose Box | Single Hole Tube, One Unit On Each Side |
Oil Hose | 2 Unit,3’ X 6mm Size In Black Rubber |
Side Guard | Cross bar-Structured |
Rear Bottom Guard | Fixed Type |
Work Tank Deck | Box Type |
Fire Extinguisher Box | Two Units At The Back Of Each Side |
Mud Guard | Steel Structure In Trapezoid Form |
Unloading System | One Oil Pump for pump in and out |
CHASSIS | |
Main Beams | Heavy Duty And Extra Durability Designed; Opting For High Tensile Steel Q345B Welded By Automatic Submerged-Arc Processes, |
Axle | Three Units Of 12 Ton BPW Square Axle |
Suspension | One Couple of Tri- Axle Air Bag Suspension |
Landing Gear | Two Speed Manual Operation 28 Ton Landing Gear |
King Pin | One Unit Of 3.5 ’ SEA Standard Welded King Pin |
Wheel Rim | 6 units of 13X22.5 Wheel Rim |
Tyre | 6 units of 425/65R22.5 Tubeless Tyres |
Pneumatic Braking System |
A System With Emergency Brake And Parking Brake; Dual Line - Air Brake, Piggyback Spring On All Axles; Two Units Of WABCO RE 6 Relay Valve; Six Units Of T30/30 Spring Brake Chamber; Two Units Of 45L Air Tanks; Two Units Of Standard Copper Air-Connector. |
Electrical System | One Unit of JAEGER POWAY ,24V 7-Pin ISO 1185 Standard Socket; Tail Lamp With Turn Signal, Brake Light & Reflector , Side Lamp Etc. One Set Of 6-Core Standard Cable. |
Painting |
Sand Blasting Processing On Rust – Proof Protection.. One Coat Of Anticorrosive Primer Two Coats Of Finish Urethane Paint Color As Customer Choice |
Accessory | One Tooling Box With A Set Of Standard Trailer Tool |
