Bituman Tank Sem Trailer

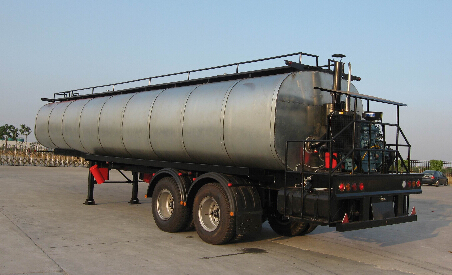

38 M3 2 AXLE ASPHALT TANK SEMI TRAILER
| Parts for Tanker | ||
| Tank Material | Carbon Steel | |
| Tank Cylinder and Dishead Specification |
Tank Cylinder body 6mm Thickness Tank Dishead 6 mm Thickness |
|
| Manhole Cover | 1 Units Of 500mm dia./ carboon steel Manhole Fixed On Top Of Tank With Breather Valve, | |
| Unloading Valve | 2 Sets of DN80 Fixed At Left and Right Side Of Tank Body, | |
| Labeling System | Oil Type Indication | |
| Anti-Static Electricity System | Pulling, Wire Carrier, Sheet Copper ( 7 Sheet-Standard Layout ) | |
| Other Parts | ||
| Ladder | One Unit At Front Of The Tank | |
| Guard On Top Of Tank | Zine Galvanized Guard Net | |
| Oil Hose Box | Single Hole Tube, One Unit On Each Side | |
| Oil Hose | 1 Unit,3’ X 6mm Size In Black Rubber | |
| Side Guard | Cross bar-Structured | |
| Rear Bottom Guard | Fixed Type | |
| Work Tank Deck | Box Type | |
| Fire Extinguisher Box | Two Units At The Back Of Each Side | |
| Mud Guard | Steel Structure In Trapezoid Form | |
| Lights And Wires | 24V,7Coils With Lights For Reverse Parking-Instruction Head Lamp And Tail Lamp | |
| Chassis | ||
| Overall length | 12825mm | |
| Overal width | 2550mm | |
| Overal height | 3850mm (complate semi trailer) | |
| Wheel track | 1840mm | |
| Wheel base | 7480mm+1310mm | |
| Tank capacity | 38 cbm Asphalt | |
| Main Beams | Heavy Duty And Extra Durability Designed; Opting For High Tensile Steel Q345B Welded By Automatic Submerged-Arc Processes, | |
| Axle | Two Units Of 13 Ton FUWA Axle | |
| Suspension | One Couple of Tandem Axle Suspension | |
| Leaf Spring | 4 sets of 10 pcs 13*90 leaf springs | |
| Landing Gear | Two Speed Manual Operation 28 Ton Landing Gear | |
| King Pin | One Unit Of 2’ SEA Standard Welded King Pin | |
| Wheel Rim | 8 units of 8.00-20 Wheel Rim | |
| Tyre | 8 units of 11.00R20 Radial Tyre | |
| Pneumatic Braking System |
A System With Emergency Brake And Parking Brake; Dual Line - Air Brake, Piggyback Spring On All Axles; One Units Of WABCO RE 4 Relay Valve; Four Units Of T30/3 Spring Brake Chamber; One Units Of 40L Air Tanks; Two Units Of Standard Copper Air-Connector. ABS 2 m 4s. |
|
| Electrical System | One Unit of JAEGER POWAY ,24V 7-Pin ISO 1185 Standard Socket; Tail Lamp With Turn Signal, Brake Light & Reflector , Side Lamp Etc. One Set Of 6-Core Standard Cable. | |
| Painting |
Sand Blasting Processing On Rust – Proof Protection.. One Coat Of Anticorrosive Primer Two Coats Of Finish Urethane Paint Color As Customer Choice |
|
