Container tank trailer

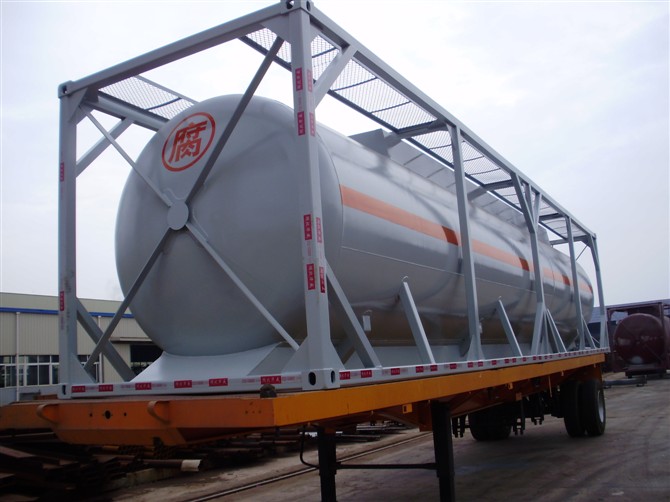

| 40 FT PHOSPHORIC ACID 904L CONTAINER TANK OVERALL SPECIFICATION | |
| Tare Weight | 6300kg |
| Payload | 69000kg |
| Total Weight | 75300kg |
| Overall Length | 12192mm |
| Overall Width | 2438mm |
| Overall Height | 2400mm |
| Tank Dimension | 11900XDN2100mm |
| TANKER DIMENSION | |
| STANDARD SPECIFICATION | |
| Tank Body | 904L Stainless Steel 6mm thickness for Phosphoric acid transportation |
| Medium | H3PO4 |
| Concentration | 1.7 |
| Loading Capacity | 40 Cubic Meter |
| Manhole | One Dia.500mm Manhole |
| Other Valves | One set of breathe valve, one set of butterfly valve 5#,one set of stainless plug. |
| Unloading System | One unloading outlet valve at the rear part, Valve Model DN80, |
| Working Pressure | ≤0.4 |
| Working temperature | Normal Surrounding Temperature(20℃- 60℃) |
