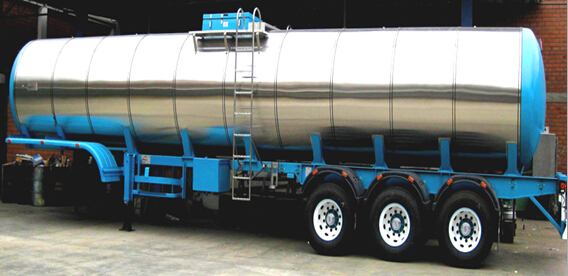

Insulation Oil Tank Semi Trailer
51 M3 Tri-Axle Insulation palm oil Tank Semi-Trailer Specification
| DIMENSIONS | |
| Tare Weight | 8500kg |
| Payload | 35000kg |
| Total Weight | 43500kg |
| Overall Length | 12000mm |
| Overall Width | 2500mm |
| Overall Height | 3413mm |
| Wheel Track | 1840mm |
| Wheel base | 6500+1360+1360mm |
| TANK PART SPECIFICATION | |
| Tank Material | High tensile steel Q345B |
| Tank Loading Capacity | 51 m3 |
| Tank Cylinder &Bulk head | 5mm thickness tank cylinder and bulk head |
| Tank shape | Ellipse round |
| Design Pressure | Normal pressure |
| Manhole Cover | 2 Units Of 500mm dia./ Carbon Manhole (C801-560 Model) Fixed On Top Of Tank, 4 Compartments |
| Unloading Valve | 2 Sets of DN80 Fixed At Right Side Of Tank Body, |
| Labeling System | Oil Type Indication |
| Anti-Static Electricity System | Pulling, Wire Carrier, Sheet Copper ( 7 Sheet-Standard Layout ) |
| Labeling System | Oil Type Indication |
| Loading and unloading system | With factory standard diesel engine to power pump for 43 m3 tank fuel loading and unloading |
| OTHER PARTS | |
| Ladder | One Unit At Front Of The Tank |
| Guard On Top Of Tank | Zine Galvanized Guard Net |
| Oil Hose Box | Single Hole Tube, One Unit On Each Side |
| Oil Hose | 2 Unit,3’ X 6mm Size In Black Rubber |
| Side Guard | Cross bar-Structured |
| Rear Bottom Guard | Fixed Type |
| Work Tank Deck | Box Type |
| Fire Extinguisher Box | Two Units At The Back Of Each Side |
| Mud Guard | Steel Structure In Trapezoid Form |
| Unloading System | One Oil Pump for pump in and out |
| CHASSIS | |
| Main Beams | Heavy Duty And Extra Durability Designed; Opting For High Tensile Steel Q345B Welded By Automatic Submerged-Arc Processes, |
| Axle | Three Units Of 13 Ton FUWA Axle |
| Suspension | One Couple of Tri- axle Heavy Duty Suspension |
| Leaf Spring | 6 sets of 10 pcs 16*90 leaf springs |
| Landing Gear | Two Speed Manual Operation 28 Ton Landing Gear |
| King Pin | One Unit Of 3.5 ’ SEA Standard Welded King Pin |
| Wheel Rim | 12 units of 8.0*20 Wheel Rim |
| Tyre | 12 units of 11.00R20 Radial Tyres |
| Pneumatic Braking System |
A System With Emergency Brake And Parking Brake; Dual Line - Air Brake, Piggyback Spring On All Axles; Two Units Of WABCO RE 6 Relay Valve; Six Units Of T30/30 Spring Brake Chamber; Two Units Of 45L Air Tanks; Two Units Of Standard Copper Air-Connector. |
| Electrical System | One Unit of JAEGER POWAY ,24V 7-Pin ISO 1185 Standard Socket; Tail Lamp With Turn Signal, Brake Light & Reflector , Side Lamp Etc. One Set Of 6-Core Standard Cable. |
| Painting |
Sand Blasting Processing On Rust – Proof Protection.. One Coat Of Anticorrosive Primer Two Coats Of Finish Urethane Paint Color As Customer Choice |
| Accessory | One Tool Box With A Set Of Standard Trailer Tool |
