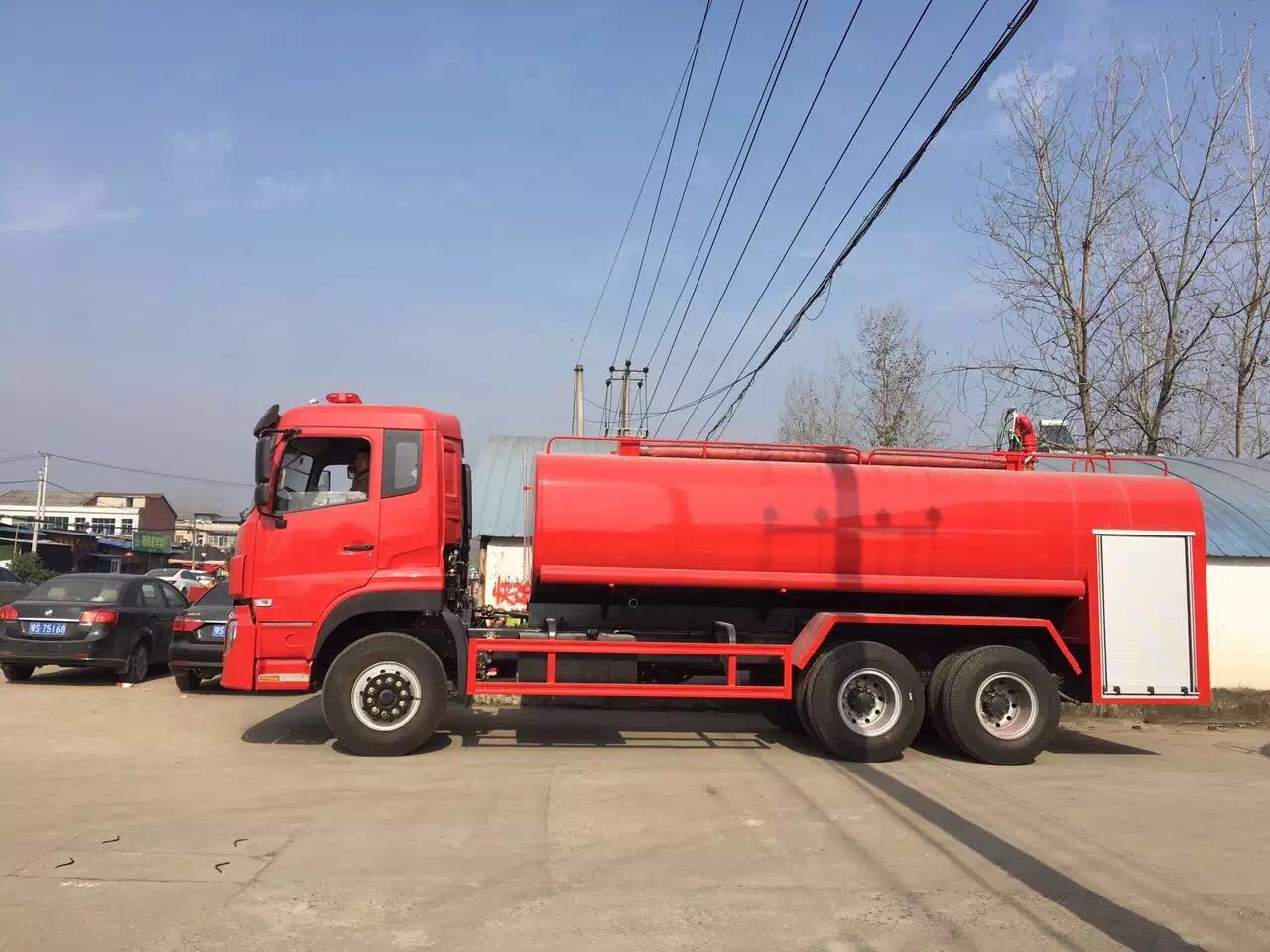

Water Tank Truck
Water Tank Truck
| Item | Unit | Parameter | |
| Vehicle model | Water Tank Truck | ||
| Chassis model | EQ1141KJ | ||
| Overall dimensions | mm | 7900×2480×3400 | |
| Fact cubage | L | 4500+1500 | |
| GVW | kg | 15000 | |
| Curb weight | kg | 8380 | |
| Water tanker dimensions | mm | 6000×1380×1300 | |
| Wheel base | mm | 4500 | |
| F/R track base | mm | 1250/2300 | |
| Approach/departure angle | ° | 27/13 | |
| Exhaust/hp | ml/kw | 5900/140 | |
| Max speed | km/h | 85 | |
| Engine | Cummins diesel engine | ||
| Tire specification | 9.00R20 | Chassis Model | EQ1141KJ |
| Traction system | 4×2 | Engine type | B190 33 |
| Brake system | Air Brake | Allowable passengers in cab | 2+3 |
| Equipment |
water tank capacity 8,000 Liter, Stainless steel 4MM made, Elliptical, Zinc metal spraying and resin coating PUMP: self-priming centrifugal pump, 660L/min, 40M3/h suction vertical depth<7m Water valve; 3 pcs Diameter 65mm Loading valve: 2 pcs Diameter 65mm Pipe line 2pcs made from Stainless steel Tank thermal insulation by Rock wool 5mm, stainless steel Face. |
||
