Water Sprayer Truck

Water Sprayer Truck

Water Sprayer Truck

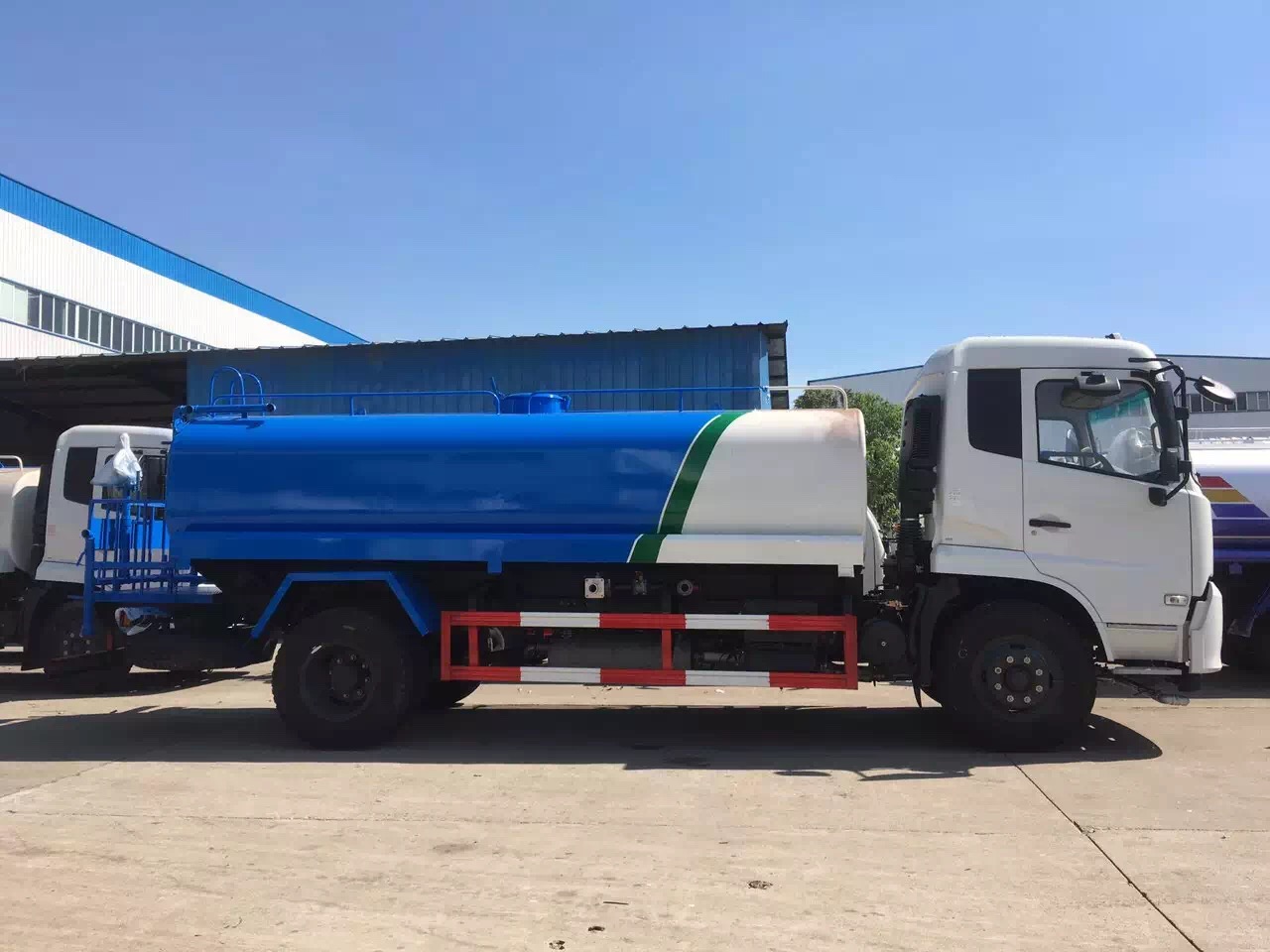

4x2 water tank road sprayer truck
Product Code HD5-0023
Colour White/Grey/Blue/Yellow/Brown/Red
GVW 8995
Curb Weight of Vehicle 4400
Payload 4400
Length 6890
Width 2290
Height 2400
Wheel Base 3800
Front Wheel Track 1831
Rear Wheel Track 1640
Front Overhang 1180
Rear Overhang 1910
Max. Speed(km/h) 95
Approach Angle(°) 22
Departure Angle(°) 12
Make/Model ISDe140 30
Displacement(ml/m³) 4500
Max.Output Power(Kw/rpm) 103
Horse Power 140
Emission Level E-III
Tire Model 8.25-16
Tyre No. 6
The Steering Wheel Left / Right (optional)
Tank Volume(L) <5000L
Sprinkling Area (m) ≥14-16m
Advantages The truck is equipped with special high power spray pump produced by Hangzhou Weilong, which is top 1 in China. The pump has capacity of self-suction and self exhaust, which is equipped with strainer and fire coupling. The pump has gravity valve, and water can inflow through fire hydrant. 20m reel is optional. The truck also can spray pesticide.
Structure The sprinkler truck has front spray, rear sprinkling and side spray. There is a working platform behind the tank, on which a spry monitor is mounted. The monitor can rotate 360°, and it can spray as washdown, heavy rain, light rain and fine rain continuously.
Spray pump Special high-power spray pump, which has mature quality, reasonable design, easy to use. It has the advantage of high pressure, long suction and long work life, which leads the spray pump area home & abroad and has a market share of 93%
Water pump Metallic paint of water tank which is nice and more corrosion proof. Water pump with water discharge switch to prevent freezing in winter in cold area
The vehicle configuration is optional
