Special Function Truck

Fire Fighting Truck

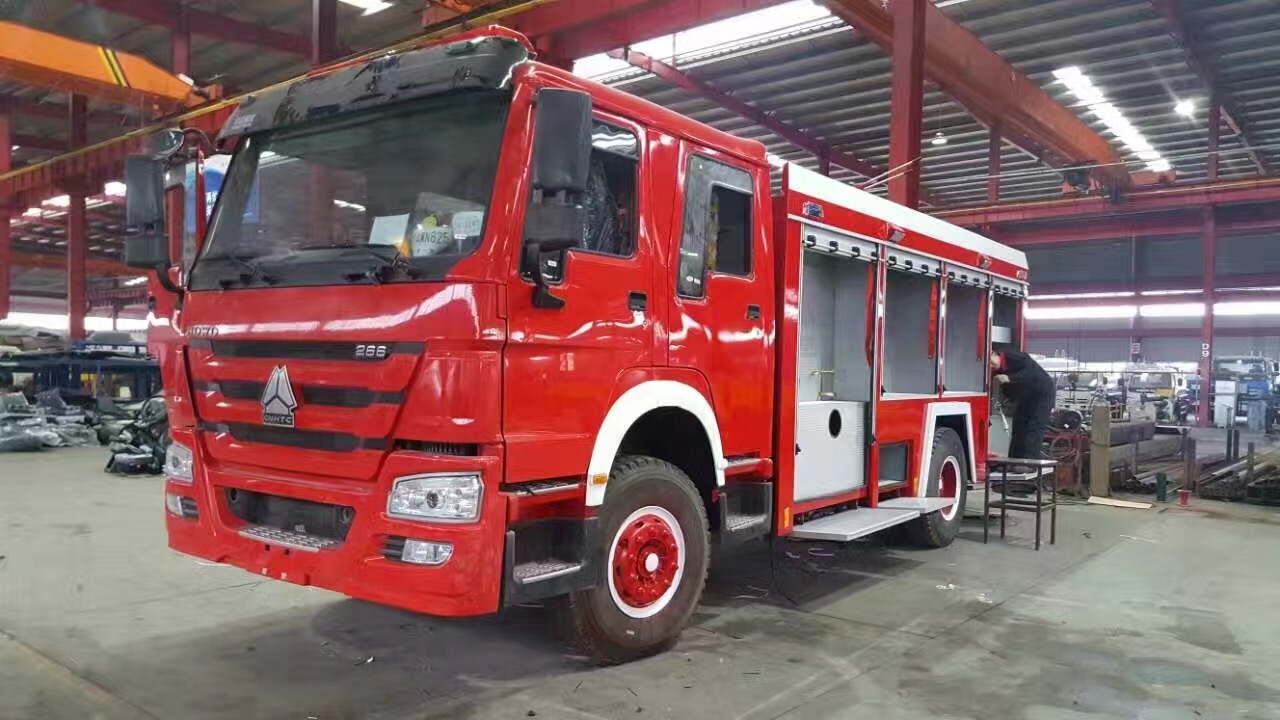

Fire Fighting Truck


Item Unit Description
Model   Fire Fighting Truck
Dimension mm 6785*1970*2895
Tank Dimension m3 Water Tank Foam Tank
Curb Weight kg 4425
Wheel Base mm 3300
F/R track base mm 1504/1425
F/R Axle -Load Kg 2000/3000
Approach/Departure angle . 24/12
Traction system 4x4 Tire Specification/Number 7.50-15 /  6 Units+1 Spare Unit
Max speed 90 km/h Number of axles/ability 2
Engine model CY4102-C3F Emission/kw 3856ml/70Kw,   95Hp
  Diesel, 4 Cylinder, direct-line, turbocharger and after cooling.
Engine Manufacturer Dongfeng Chaoyang Engine Co.,Ltd
Steering  Power Transmission DF5S900,  5F&1R
Cab passenger 6~7 Electric System 24V
Driving system left hand
Fire Pumper
Fire Cannon PS20 , 20L/S/1Mpa Working Range  >40 m
Fire Pump CB10/20 Performance 20L/s , 1.0Mpa
Remark: Equipped with LED fire light, Fire alarm, Detection light at rear. Suction pipe of 100x2000mm x4 Units. Water Filter x1, Water Two way x1, Fire pipe O65x20m x6 Units, Fire pipe o80x20m x 6 Units.Conncetion port x1, Pipe package x4, pipe hock x 4, Ground Fire banner x 2, Underground fire banner x2, suction pipe banner x4, Powder extinguisher x1, Fire axe x2, Fire Spade x 2.
