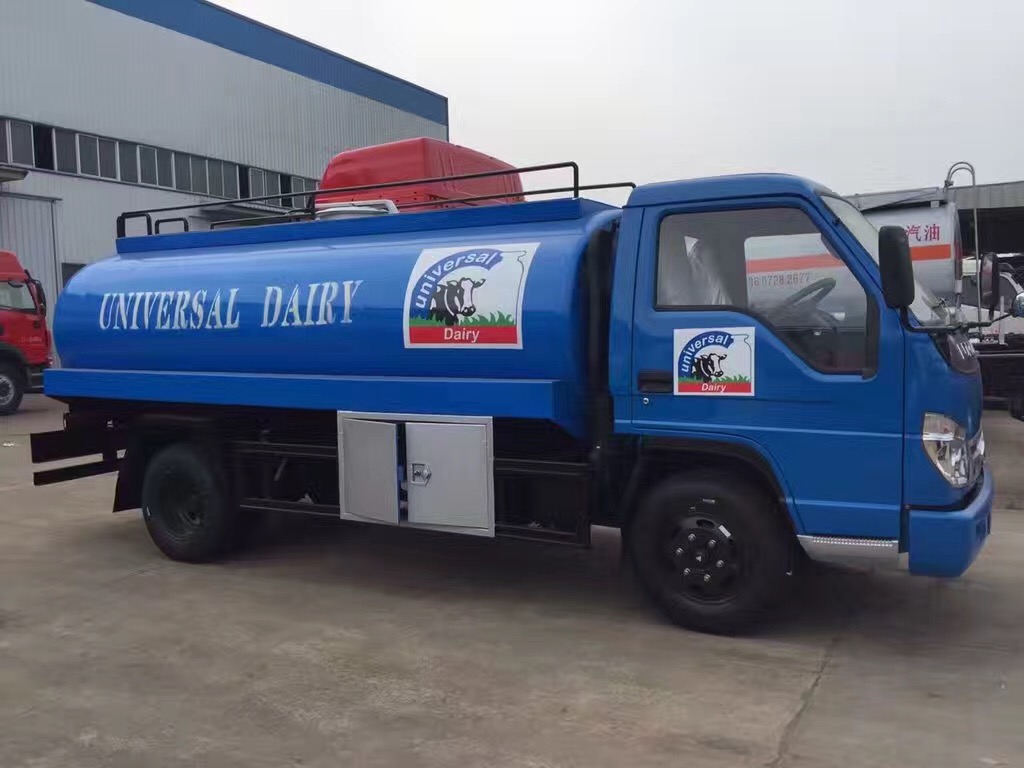

Fresh Milk Tank Truck
Fresh Milk Tank Truck
| Milk tanker truck | |
| Model Name | Milk Tank Truck |
| Chassis model | EQ1060TJ20D3 |
| Driving Type | 4×2 |
| Dimensions | |
| Wheelbase(mm) | 3300 |
| Overall Dimension(mm) | 5990×1960×2400 |
| Milk tanker size(mm) | 3100/1750/1150(length/long axle/short axle) |
| Weights | |
| GVW(kg) | 6495 |
| Rated payload weight(kg) | 3000 |
| Curb weight(kg) | 3365 |
| Axles loading | 2480/4015 |
| Front trade(mm) | 1506 |
| Rear trade(mm) | 1466 |
| Front/rear overhang(mm) | 1032/1658 |
| Approach angle(°) | 18 |
| Departure angle(°) | 12 |
| Max speed(km/h) | 80 |
| Engine | |
| Engine model |
YC4F90-30 CY4102-C3F SD4BW70-3R |
| Tanker body | |
| Tanker body size(mm) | 5 M3 |
| Milk tanker material | Stainless steel |
| Transmission | |
| Model | 5 speed,5 forwarder,1 reverse gear |
| Tire specification | |
| Tire specification | 7.00-16; 6 tires+1 spare tire |
| Special function of water tank truck | |
| Milk tanker material | high quality food grade stainless steel (Q304) |
| Manhole | Man way access hole on top of tank;1-4 units manhole |
| Special function | |
|
Special Function |
1. The milk tank is made up of three layers: outside layer (for physical protection), middle layer (thermal insulation), and inner layer tank (for milk filling). 2. The thickness of thermal insulation layer is 80mm 3. The tank liner is made of high quality food grade stainless steel, and the inner tank has been fine polished. 4. Equipped with PIC cleaning devices. 5. With function of thermal insulation: medium temperature change≤1°C during 24 hours. 6. The tank can be diveded into several parts according to demand to load different materials. |
