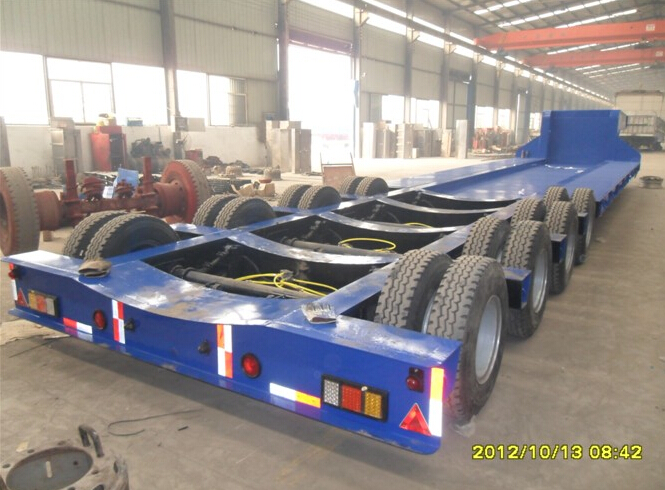

4 axle Transport Pipe Lowbed
4 axle lowbed for transport pipe semi trailer
| DIMENSIONS | |
| Tare Weight | 12000kg |
| Payload | 80000kg |
| Total Weight | 812000kg |
| Overall Length | 18000mm |
| Overall Width | 3800mm |
| Overall Height | 3110mm |
| Wheel Track | 2180mm |
| Wheelbase | 7550mm+1300mm+1300mm+1300mm |
| Loading deck length | 14500mm concave type deck |
| STANDARD SPECIFICATION | |
| Main Frame |
Heavy duty and extra durability designed; high tensile steel Q345B,welded by automatic Submerged-Arc processes 500mm Height I beam, Top Flange 20mm,width 140mm; Middle Flange 12mm ; Bottom Flange 20mm,width 140mm |
| Floor | Steel Sheet 5mm thickness |
| Axle | Four Units of FUWA 16 Ton Axle |
| Suspension | One couple of mechanical Four-Axle suspension |
| Leaf Spring | Eight sets of 10-pieces 16X90 mm leaf spring |
| King Pin | One unit of 3.5``(90#) SAE standard bolted kingpin |
| Landing Gear | Two-speed, manual operating, 28 ton heavy duty Jinhua Brand Landing Gear |
| Wheel Rim | Sixteen units of 8.0-20 wheel rim |
| Tyre | Sixteen units of 11.00R20 Radial tyre |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
| Pneumatic Braking System | A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; two units of WABCO RE 8 relay valve (or equivalent); Eight units of T30/30 spring brake chamber; Two units of 45L air tanks; two units of standard copper air-connector. |
| Electrical System | One unit of JAEGER POWAY(or equivalent), 24V 7-pin ISO 1185 standard socket; Standard Tail lamp with turn signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable. |
| Painting | Sand blasting processing on rust – proof protection. One coat of anticorrosive primer, two coats of finish urethane paint, Color as customer choice |
| Accessory | One tool box with a set of standard trailer tool |
