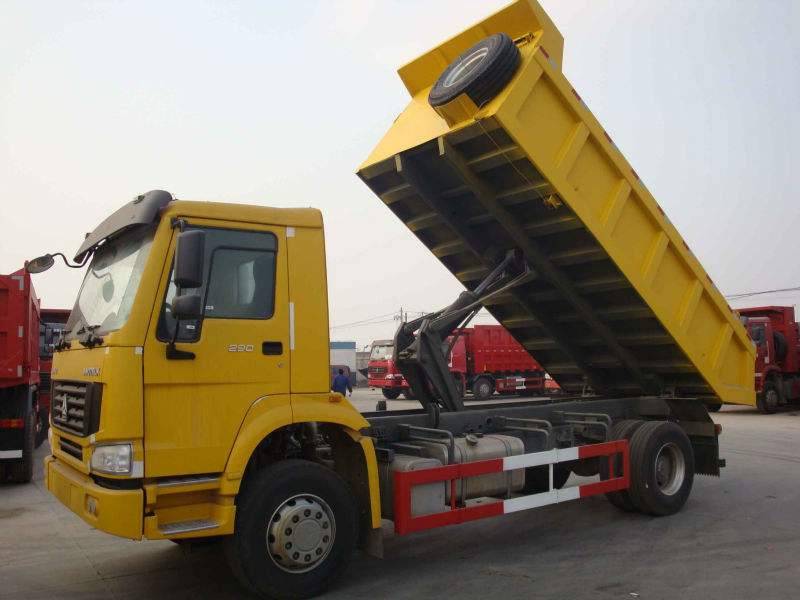

Dump Truck
Dump Truck
Technical specifications | CHASSIS MODEL | 6 x 4 ,with air conditioner,LHD |
Engine | P11C-VK 350HP Europe 4 | |
Engine capacity | 1020 | |
Engine power (kw) | 259 | |
Transmission | 12JSD160TA | |
clutch | DSF-430 | |
Driving axle | THD18 | |
G.R.V.W (Kg) | 40000 | |
Tare Weight (Kg) | 15000 | |
Loading Capacity (Kg) | 25000 | |
Max. Speed (Km/h) | 90 | |
Brakes | Air braking | |
Tires | 11R20,DUNLOP,11 units | |
Cab | Two seats with one bed | |
Outline Dimension (mm): | 8080x2495x3120 | |
Wheelbase (mm) | 3750+1410 | |
Front axle load (kg) | 8000 | |
Rear axle load (kg) | 31000 | |
Tipper body Specs | Dimension of cargo box (mm) | 5400 (L) x 2300 (W) x 1500(H) |
Lift system | Middle lift ,”F” type | |
Thickness of bottom plate(mm) | 8 | |
Thickness of side plate: mm | 6 | |
Loading capacity of cargo box (m3) | 18.63M3 |
