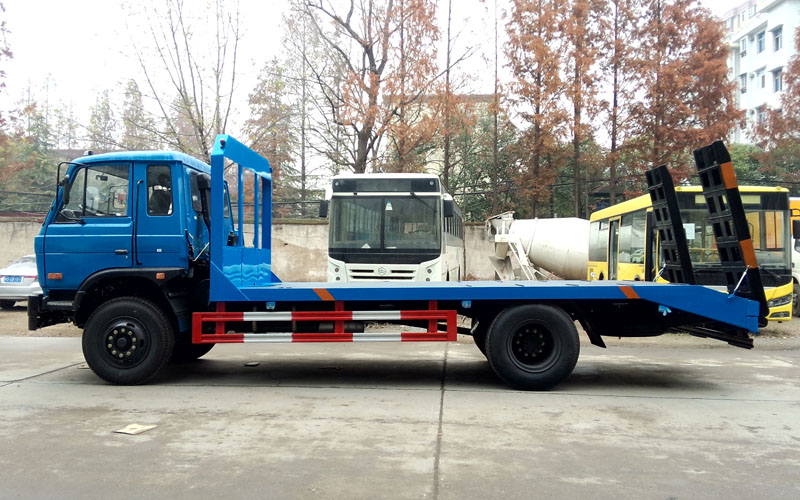

Flatbed Truck
Flatbed Truck
| Chassis Information | |
| Chassis brand | FAW/Dongfeng/Foton/JAC |
| Chassis model | CA1163P9K2L4A3E |
| Drive type | 4×2 |
| Dimension Parameter | |
| Overall dimension (L*W*H) (mm) | 8500*2490*2850 |
| Front / Rear suspension (mm) | 1330/2670 |
| Wheel base (mm) | 5000 |
| Wheel No. | 2 |
| Front / Rear track (mm) | 1810/1740 |
| Weight Parameter | |
| GVW (kg) | 16000 |
| Payload weight (kg) | 8800 |
| Kerb weight (kg) | 7005 |
| Engine Parameter | |
| Model | CA4DF3-14E3F |
| Manufacturer | FAW |
| Horsepower (hp) | 140 |
| Displacement / power (ml/kw) | 4752/105 |
| Emission Standard | Euro III |
| Tyre | |
| Type | 8.25R20 |
| Tyre No. | 6+1 spare tyre |
| Cab | |
| Type | flat roof cab |
| Flat Bed Specification | |
| Working platform material | 5mm diamond plate |
| Working platform length | 5.6-5.8m (not include slope) |
