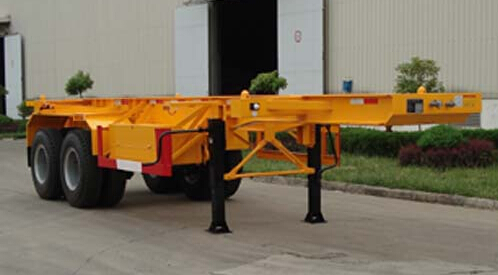

2 axle Skeleton Container Semi Trailer
20 ft 2 axle Skeleton container semi trailer Specifications
| DIMENSIONS | |
| Tare Weight | 6500kg |
| Payload | 40000kg |
| Total Weight | 46500kg |
| Overall Length | 12420mm |
| Overall Width | 2480mm |
| Overall Height | 1480mm |
| Wheel Track | 1840mm |
| Wheelbase | 8150mm+1310mm |
| Transportation Method | Within 40HQ Container and Cut 0.8 meter from Trailer Tail |
| STANDARD SPECIFICATION | |
| Main Frame | Heavy duty and extra durability designed; high tensile steel Q345B,welded by automatic Submerged-Arc processes 500mm Height I beam, Top Flange 14mm,width 140mm; Middle Flange 8mm ; Bottom Flange 16mm,width 140mm |
| Axle | Two Units of FUWA 13 Ton Axle |
| Suspension | One couple of Tandem-axle Mechanical Suspension |
| Leaf Spring | Four sets of 8 pieces 16x90mm Leaf Spring |
| King Pin | One unit of 2`` SAE standard Bolted Kingpin(or equivalent) |
| Landing Gear | Two-speed , manual operating, heavy duty Landing Gear (or equivalent) |
| Wheel Rim | Eight units of 8.0-20 Wheel Rim |
| Tyre | Eight units of 11.00R-20 Radial Tyres |
| Twist Lock | Eight nos. of ISO standard twist lock for 1x20ft;2x20ft;1x40ft container, the central locks can be laid down. |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. And regular side guard board,steel type mudguard |
| Pneumatic Braking System | A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; Two units of WABCO RE 4 relay valve(or equivalent); Two units of T30/30 spring brake chamber; Two units of T30 brake chamber, One units of 40L air tanks; two units of standard copper air-connector. |
| Electrical System | One unit of JAEGER POWAY (or equivalent),24V 7-pin ISO 1185 standard socket; Tail lamp with turn signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable. |
| Painting | Sand blasting processing on rust – proof protection.. One coat of anticorrosive primer Two coats of finish urethane paint Color as customer choice |
| Accessory | One tooling box |
