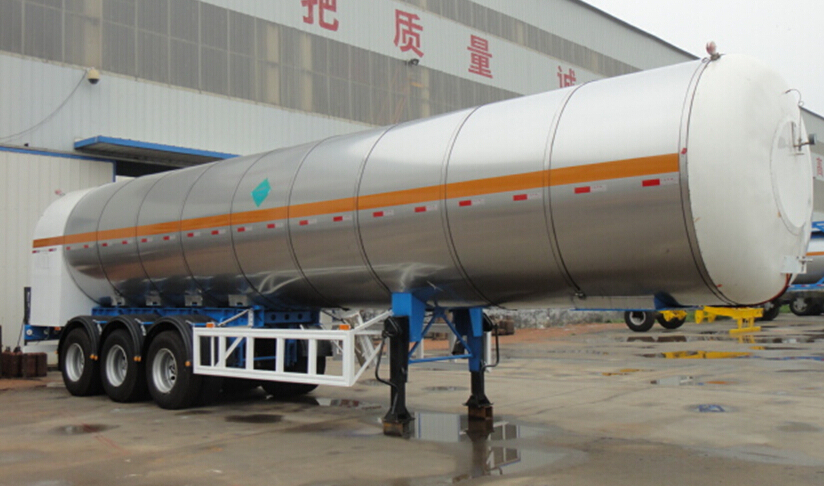

LCO2 Tank Semi Trailer
27 M3 LCO2 TANK SEMI TRAILER
| Technical Specification | ||
| Design Capacity | 27 m3 | |
| Payload | 24000Kg | |
| Tank Trailer Weight | 16000Kg | |
| Total Weight | 40000Kg | |
| Empty Load | Fifth Wheel Part | 5500Kg |
| Axle Part | 10500Kg | |
| Full Load | Fifth Wheel Part | 16000Kg |
| Axle Part | 24000Kg | |
| Design Speed | Flat Road | 75Km/H |
| Turning | 20Km/H | |
| Phneumatic Testing Pressure | 24Mpa | |
| External Dimensions(LXWXH) | 11000X2500X3995 | |
| Type | CYJ-1 | |
| TANK PART | ||
| Design pressure | 2.4 MPA | |
| Design Temperature | - 39℃ | |
| Main Body Material | 16MnDR | |
| Corrosion Thickness | 1mm | |
| Vessel Catergory | Three | |
| Cubic Volume | 27000L | |
| Filling Medium | Liquefied Carbon Dioxide | |
| Tank Weight | 9220Kg | |
| Phneumatic Testing Pressure | 2.76Mpa | |
| External Dimension (Inner Dia. X Shell Thickness X Length ) |
∮2000X16X9000 ∮2432X0.8X9500 |
|
| Nominal Pressure | 4Mpa | |
| Opening pressure | 3.3Mpa | |
| Reseating Pressure | ≥2.64Mpa | |
| Discharging Pressure | ＜3.68Mpa | |
