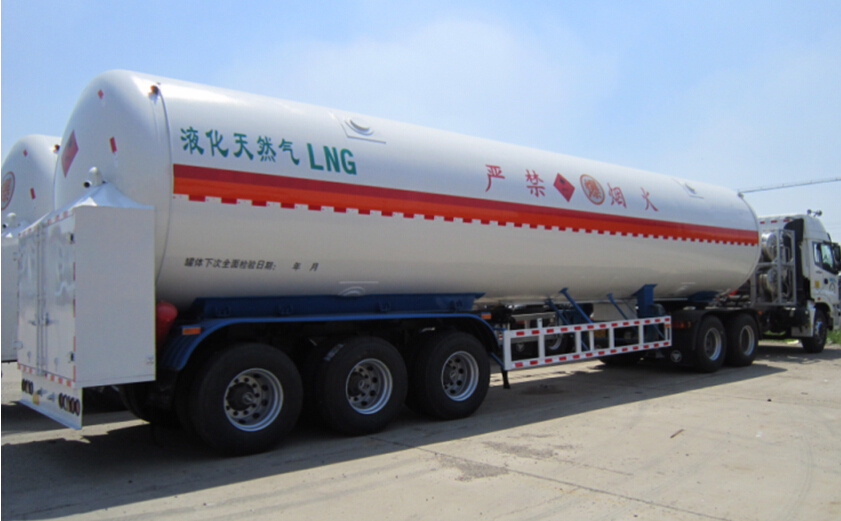

LNG Tank Semi Trailer
LNG Tank Semi Trailer
DIMENSIONS | ||
Tare Weight | 14913kg | |
Payload | 22320kg(LNG) | |
Total Weight | 37233kg | |
Overall Length | 13000mm | |
Overall Width | 2500mm | |
Overall Height | 3920mm | |
Wheel Track | 1840mm | |
Wheelbase | 7110+1310+1310mm | |
STANDARD SPECIFICATION | ||
Axle | Three units of 13 ton FUWA brand axle | |
Suspension | One unit of tri- axle mechanical suspension | |
Leaf Spring | Six units of 10 pcs 16X90 leaf springs | |
King Pin | One unit of 2`` SAE standard bolted-in kingpin | |
Landing Gear | Two-speed , manual operating, heavy duty landing gear | |
Wheel Rim | Twelve units of 9.0-20 wheel rim | |
Tyre | Twelve units of 12R20 radial tyres | |
Spare Wheel Carrier | One set of spare wheel carrier including a riser. | |
Tank part specifications | ||
Item | Data | |
Inner Vessel | Shell | |
Environment/work temperature(℃) | -162 | 50 |
Design temperature(℃) | -198 | 50 |
Work pressure (MPa) | 0.68 | -0.1 |
Design pressure (MPa) | 0.68 | -0.1 |
Welding joint radio | 1 | 0.85 |
Medium | LNG | / |
Dangerous Level | Flammable | / |
Toxicity Level | / | / |
Corrosion allowance(mm) | 0 | 0 |
