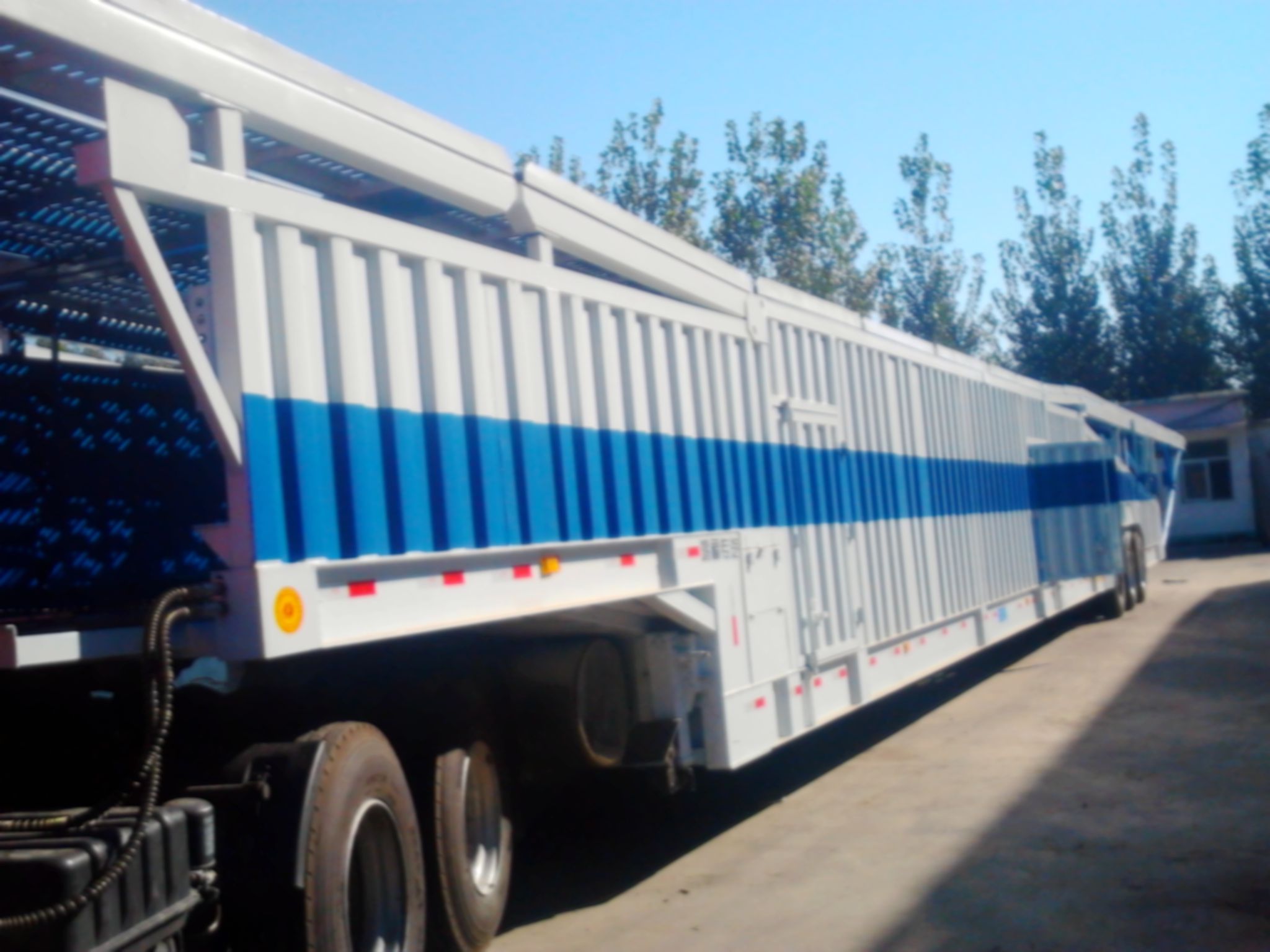

Van Car Carrier Trailer
Van Car Carrier Trailer
| Item | Specification | ||
| Client | Guangzhou City Armada Trading Co.,Ltd. China | ||
| Vehicle Type | 2 axle dual tyres Flatbed - COVER type Car Carrier | ||
|
Overall dimension (mm) |
Overall Length | 14100 | |
| Overall width | 2650 | ||
| Overall Height | 3650 | ||
| Height of Loading Surface | / | ||
|
Chassis Net Weight (kg) |
Chassis assembly | ①Two units of Main Beam Size 360×12,14/16，Material standard Q345A，Overall Weight 3100；②Side Channel Bending [220×75×10，Material Standard Q345A，Overall weight ：1100；③ Front and Rear Crossbeam Dimension □200×100×6，Q235A，Overall Weight 100；④Other Q235A Profiled Bar Weight ：911. | |
| Rear Chassis Assembly | ①Upper Side Channel Dimension 240×85×40×8，Q345A，Overall Weight 1250；②Other Q345A Welded Construction or Bending Construction material weight ：1600；③ Other Q235A Profiled Bar Material Weight ：2800. | ||
| Checked Plate | 3 mm Thickness Perforated Plate | ||
| Water Tank | One Set | ||
| Overall Weight | 9000 KG | ||
| Axle | 13 Ton FUWA Extended Axle，Wheel Track 2000mm； (Two Axles) | ||
| Wheel Rim | 8.0-20 10 Hole Wheel Rim；(9 units, With Spare Rim ) | ||
| Tyre | 11.00－R20 PR16 Tyre；(9 Units, With Spare Tyre) | ||
| Suspension System | 10 Pcs Leaf Spring | ||
| Breaking System | Dual Circuit Full Air Breaking, At least One Axle Equipped Emergency Relay Valve Breaking System | ||
| Electrical System | 24V | ||
| King Pin | 90# A | ||
| Landing Gear | One unit of 14×2 Ton Landing Gear | ||
| Painting | Normal | ||
| Accessory | Cover | With Protection steel cover | |
| Tool Box | One Tool Box ：1000×500×500 | ||
| Additional Parts | ①、One Set Hand Control Valve；②、Two Pcs Air Brake Coils（Outer Dia. Φ150、n=38 fold）③、Two Pcs Air Tank ；④、One 7 Pin Cable（Outer Dia.Φ135、n=38 fold）⑤、Two Sets of 7 Pin and Plug and Socket | ||
| Others | 32 sets of Catch of Wheel，First-axis Sleeves、Tyre Sleeve、Handle、Hand Chain Blocks Each One Set | ||
| Note |
|
||
