Car Carrier Trailer

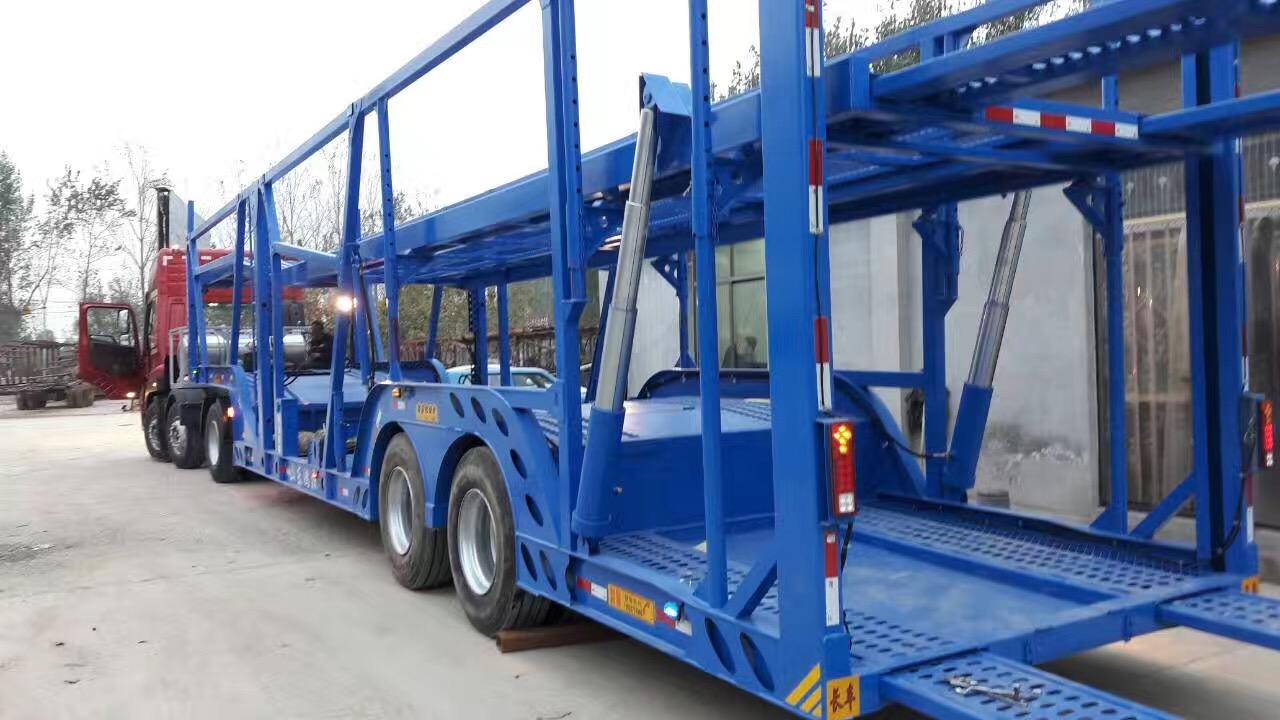

8 unit Car Carrier Trailer



6 unit Car Carrier


Item Specification
Vehicle Type 13.6 METER 2 AXLE DOUBLE DECK CAR CARRIER
Vehicle Carrying Quantity 8 Sets
Overall
dimension (mm)
Overall
Length
14600
Overall Width 2500
Overall
Height
4441@Loading
Chassis Net
Weight
(kg)
Chassis
Assembly
①Two units of Main Beam Size 360 X 170X12,Material standard Q345A;②Side Channel Bending220×75×10,Material standard Q345A;③Front and Rear Crossbeam Dimension 200×100×6,Q235A;④Other Q235A Profiled Bar
Rear Chassis
Assembly
① Upper Side Channel Dimension 240×85×40×8,Q345A②Other Q345A Welded Construction or Bending Construction material;③ Other Q235A Profiled Bar
Checked Plate 3 mm Thickness Perforated Plate
Water Tank 1 set of 1000X500 mm ( Diameter )
Storage Tank 850X500X500 mm
Overall Weight 10000 KG
Axle Two units of 13 T Axle ,Wheel Track 1840 mm;
Wheel Rim 10 Hole 8.0-20 Wheel Rim;(9 units, One spare Rim )
Tyre 11.00R20R PR16 Double coin brand Tyre; (9 units, One spare Tyre)
Suspension System 10 Pcs Leaf Spring
Breaking System Dual Circuit Full Air breaking, At least One Axle Equipped Emergency Relay Valve Breaking System
Electrical System  24V
King pin 90#
Landing Gear One unit of 15×2 Ton Landing Gear
Painting Normal
Accessory Tyre Carrier One unit of 500X250X200 (As per our standard one)
Tool Box One unit of 1500X650X500 mm Tool Box
Additional
Parts
①、One set of Hand Control Valve ;②、Two Pcs Air Brake Coils(Outer Dia.Φ150、n=38 fold)③、Two Pcs Air Tanks;④、One 7 Pin Cable ( Outer Dia.Φ135、n=38 fold)⑤、Two Sets of 7 Pin and Plug and Socket. Total 20 Pcs lights (5 Pcs lights, 5 Pcs on Top Frame each side, 5 Pcs on Bottom Frame each side).4 Tail lights.
Others 20 Sets of Catch of Wheel. First-axis Sleeves,Tyres Sleeves Handle ,Hand Chain blocks each One Set
Ladder Two complete ladders at rear part
