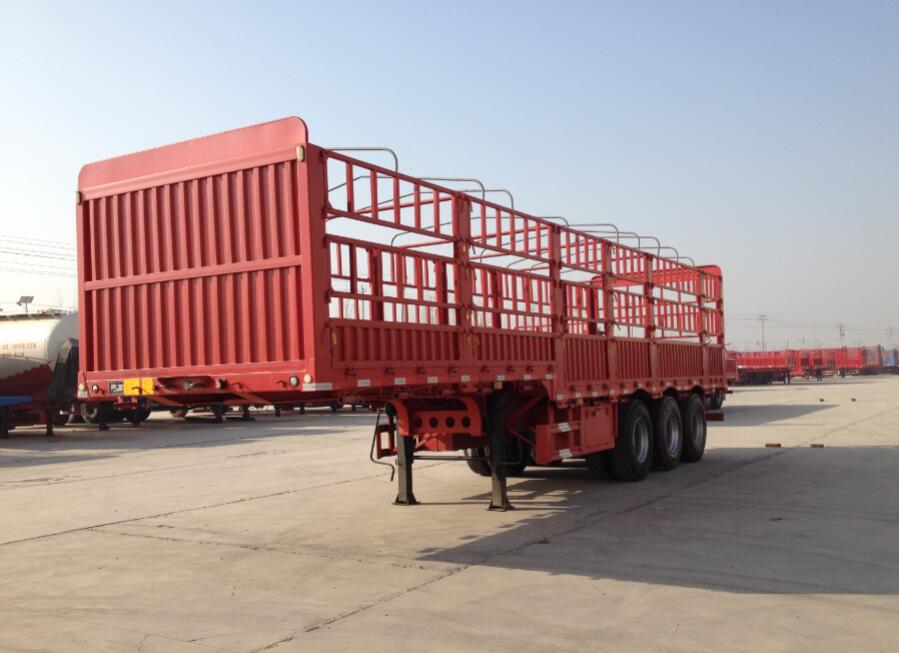

13 M 3 axle Warehouse Semi Trailer

13 M 3 axle Warehouse Semi Trailer

Tare  Weight 7500kg
Payload 40000kg
Total  Weight 47500kg
Overall  Length 13000mm
Overall  Width 2480mm
Overall  Height 3900mm
Wheel Track 1840mm
Wheelbase 8350mm+1300mm+1300mm
Main  Frame Heavy duty and extra durability designed; high tensile steel Q345B , welded by automatic Submerged-Arc processes; 500mm Height I beam, Top Flange 14mm thickness, 140 mm width, Middle flange 6mm thickness, bottom flange 16mm thickness, 140 mm width.
Floor 3mm thickness checkered plate
Axle Three Units of FUWA13Ton axle
Suspension One couple of mechanical Tri-axle Mechanical suspension
Leaf Spring Six sets of 10-pieces 16X90mm leaf spring
King Pin One unit of 2`` SAE standard bolted-in kingpin
Landing Gear Two-speed , manual operating, heavy duty 28 Ton landing gear
Wheel Rim Twelve units of 9.0-22.5 wheel rim
Tyre Twelve units of 12R22.5 tubeless tyres
Spare Wheel Carrier One set of spare wheel carrier including a riser.
Pneumatic Braking System A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; One unit of WABCO RE 6 relay valve(or equivalent); six units of T30/30 spring brake chamber. One unit of 45L air tank; two units of standard copper air-connector.
Electrical  System One unit of JAEGER POWAY (or equivalent), 24V 7-pin ISO 1185 standard socket; Tail lamp with turn signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable.
Painting Sand blasting processing on rust – proof protection. One coat of anticorrosive primer,two coats of finish urethane paint, Color as customer choice
Accessory Two tool box
