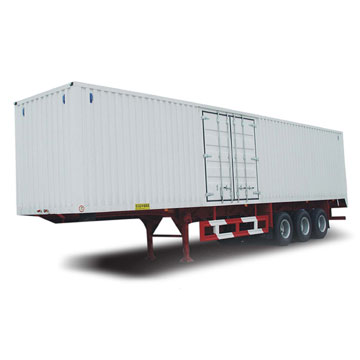

13.5 Meter 3 Axle Van Semi Trailer


13.5 Meter 3 Axle Van Semi Trailer



DIMENSIONS
Tare  Weight 11000kg
Payload 50000kg
Total  Weight 61000kg
Overall  Length 13500mm
Overall  Width 2500mm
Overall  Height 4145mm
Wheel Track 1840mm
Wheelbase 8880mm+1300mm+1300mm
Main  Frame Heavy duty and extra durability designed; high tensile steel Q345B , welded by automatic Submerged-Arc processes; 500mm Height I beam, Top Flange 14mm thickness, 140 mm width, Middle flange 6mm thickness, bottom flange 16mm thickness, 140 mm width.
Axle Three Units of FUWA13Ton axle
Suspension One couple of mechanical Tri-axle Mechanical suspension
Leaf Spring Six sets of 10-pieces 16X90mm leaf spring
King Pin One unit of 50# SAE standard welded kingpin
Landing Gear Two-speed , manual operating, heavy duty 28 Ton landing gear
Wheel Rim Thirteen units of 9.0-22.5 wheel rim (with spare wheel rims)
Tyre Thirteen units of 315/80R22.5 tubeless tyres (with one spare tyre).
Container Floor Wooden floor with Roller track system for 1.2X1.0 pallet transport
Spare Wheel Carrier One set of spare wheel carrier including a riser.
Pneumatic Braking System A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; One unit of WABCO RE 6 relay valve(or equivalent); Six units of T30/30 spring brake chamber. Two unit of 45L air tank; two units of standard copper air-connector.
Electrical  System One unit of JAEGER POWAY (or equivalent), 24V 7-pin ISO 1185 standard socket; LED Tail lamp with turn signal, brake light & reflector, 10 units of Side lamp etc. One set of 6-core standard Cable.
Painting Sand blasting processing on rust – proof protection. One coat of anticorrosive primer,two coats of finish urethane paint, Color as customer choice
Accessory One lockable tool box
