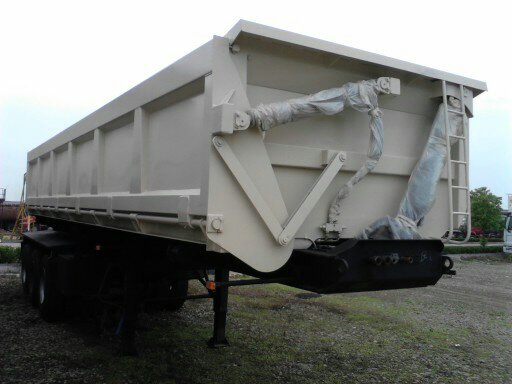

U shape Side Dump Semi Trailer
40 CBM 3 axle U Shape Side Dump Semi Trailer
| DIMENSIONS | |
| Tare Weight | 10500kg |
| Payload | 40,000kg |
| Total Weight | 50500kg |
| Overall Length | 10000mm |
| Overall Width | 2500mm |
| Overall Height | 3800mm |
| Wheel Track | 1840mm |
| Wheelbase | 5850mm+1360mm+1360mm |
| Tipper Body Dimension | L9800X W2300XH1800mm |
| Loading Material | Suitable for 40 CBM Material Transport |
| STANDARD SPECIFICATION | |
| Main Frame | Heavy duty and extra durability designed; high tensile steel Q345B,welded by automatic Submerged-Arc processes,500mm Height I beam, Top Flange 16mm,width 140mm; Middle Flange 10mm ; Bottom Flange 18mm,width 140mm. |
| Axle | Three units of 13 ton FUWA brand axle |
| Suspension | One unit of Tri- axle heavy-duty mechanical suspension |
| Leaf Spring | Six units of 10 pcs 16X90 leaf springs |
| Floor and side board | Front and side board 8mm thickness, floor 8mm thickness ,with reinforced inclined stiffeners 8 mm |
| King Pin | One unit of 3.5'`` SAE standard bolted-in kingpin |
| Landing Gear | Two-speed, manual operating, 28 Ton landing gear |
| Cylinder | HYVA 8130 hydraulic cylinder |
| Wheel Rim | Twelve units of 8.0-20 wheel rim |
| Tyre | Twelve units of 11.00R20 Radial tyres |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
| Pneumatic Braking System | A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; One unit of WABCO RE 4 relay valve(or equivalent); Six units of T30/30 spring brake chamber, two unit of 45L air tank; two units of standard copper air-connector. |
| Electrical System | One unit of JAEGER POWAY (or equivalent), 24V 7-pin ISO 1185 standard socket; Tail lamp with turn signal, brake light & reflector, Side lamp etc.One set of 6-core standard Cable. |
| Painting | Sand blasting processing on rust – proof protection. One coat of anticorrosive primer ,two coats of finish urethane paint, Color as customer choice |
| Accessory | One tool box |
