Tipper/Dump Trailer

Heavy-duty Dump Semi Trailer

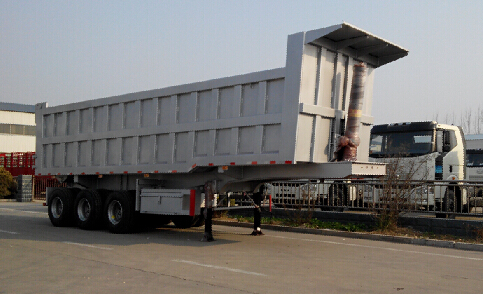

 45 CBM 3 axle Front Dump semi trailer

Tare  Weight 11000kg
Payload 60,000kg (max payload)
Total  Weight 71000kg
Overall  Length 10950mm
Overall  Width 2500mm
Overall  Height 3620mm
Wheel Track 1840mm
Wheelbase 6884mm+1360mm+1360mm
                           STANDARD  SPECIFICATION
Main  Frame Heavy duty and extra durability designed; high tensile steel Q345B,welded by automatic Submerged-Arc processes,500mm Height I beam, Top Flange 18mm,width 140mm; Middle Flange 10mm ; Bottom Flange 20mm,width 140mm.
Axle Three units of 16 ton FUWA brand axle
Suspension One unit of tri- axle heavy-duty mechanical suspension
Leaf Spring Six units of 12 pcs 16X90 leaf springs
Floor and side board Front and side board 8mm thickness, floor 8mm thickness ,with reinforced inclined stiffeners 10 mm
King Pin One unit of 3.5'`` SAE standard bolted-in kingpin
Landing Gear Two-speed, manual operating, heavy duty landing gear
Cylinder HYVA  8130 hydraulic cylinder
Wheel Rim Twelve units of 8.5-20 wheel rim
Tyre Twelve units of 12.00R20 triangle Brand radial tyres
Spare Wheel Carrier One set of spare wheel carrier including a riser.
Pneumatic Braking System A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; One unit of WABCO RE 6 relay valve(or equivalent); six units of T30/30 spring brake chamber, two unit of 45L air tank; two units of standard copper air-connector.
Electrical  System One unit of JAEGER POWAY (or equivalent), 24V 7-pin ISO 1185 standard socket; Tail lamp with turn signal, brake light & reflector, Side lamp etc.One set of 6-core standard Cable.
Painting Sand blasting processing on rust – proof protection. One coat of anticorrosive primer ,two coats of finish urethane paint, Color as customer choice
Accessory One tool box
