Garbage Truck

Garbage Truck

Garbage Truck

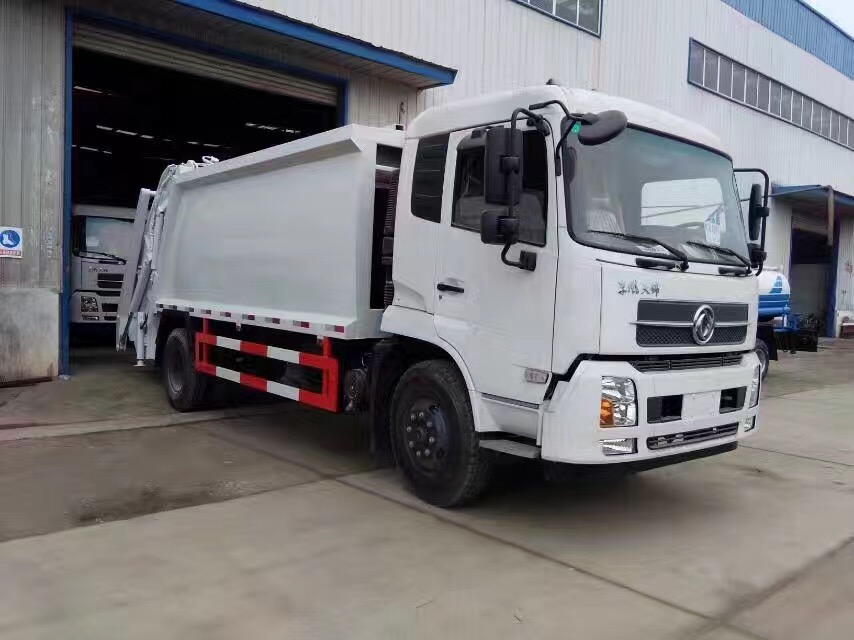

Name Compactor Garbage Truck
Dimension(LxWxH) 8000×2470×3160(mm)
Total Mass 29805 Kg
Rated Payload 20000 Kg
Kerb Weight 9805 Kg
Passenger  3
Approach/Departure Angle 20/15
The Parameters of Chassis
Manufacture/Model Dongfeng/DFL1160BX1V
Driving Type 4*2 left/right hand drive
Wheel Base 4500 mm
Gearbox Seven speed lever with six speed forward and one reverse, manual
Front/Rear Track 1940/1860(mm)
Tyre 10.00-20
The Number of Tyre 6+1(spare tyre)
Front/ Rear Suspension 1430/2370(mm)
Leaf Spring Number 8/10+8
The Paremeters of Engine
Manufacturer/Model Cummins/ISDE180 30
Rated Power 180hp/133kw
Fuel Type Diesel oil
Displacement/Capacity 6.7L
Emission Standard Euro3
Cylinder Straight/6/intercooling
Max. torque 650N.m
Velocity 2500rpm
The Parameters of Equipment
Container Capacity 12 m3
Loading Circulation Time 12- 30 s
Rubbish Discharging Time <= 30 s
Oil Pressure 19.6 / 200 Mpa / kg
Compressed Proportion 1:3 / 1:2
Rear Overhang 2400 mm
Garbage Bin Turning-over Instrument As required
