Fuel/Water/Cement Tank

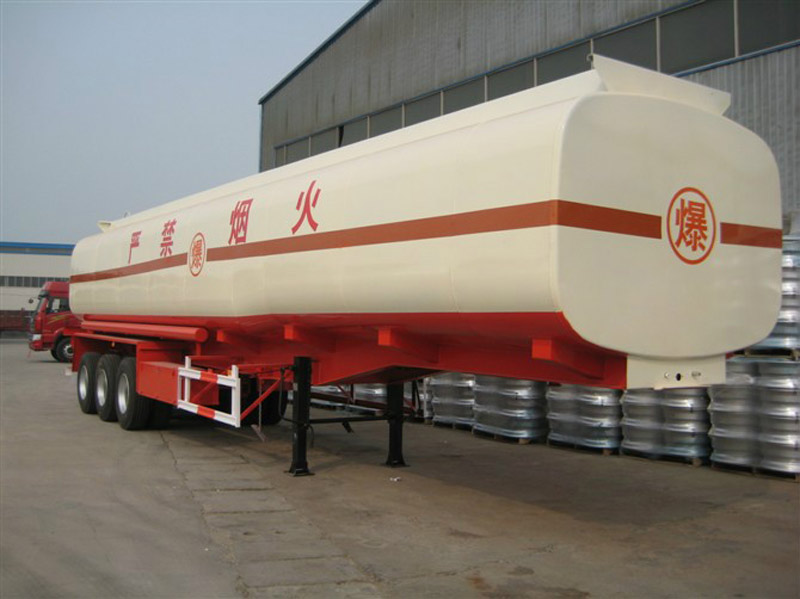

Fuel Tank semi trailer

 45 M3 Tri-Axle Fuel Tanker Semi-Trailer Specification

Tare Weight 9000kg
Payload 35000kg
Total Weight 44000kg
Overall Length 11900mm
Overall Width 2500mm
Overall Height 3900mm
Wheel Track 1840mm
Wheel base 7500+1360+1360mm
Tank Material High tensile steel Q345B
Tank Loading Capacity 45 m3
Tank Cylinder &Bulk head 5mm thickness tank cylinder and 6mm bulk head
Tank shape Ellipse round
Design Pressure Normal pressure
Manhole Cover 3 Units Of 500mm dia. / Carbon Manhole (C801-560 Model) Fixed On Top Of Tank
Unloading Valve 2 Sets of DN80 Fixed At left side Of Tank Body,
Anti-Static Electricity System Pulling, Wire Carrier, Sheet Copper ( 7 Sheet-Standard Layout )
Labeling System Oil Type Indication
             OTHER PARTS
Ladder One Unit At Front Of The Tank
Guard On Top Of Tank Zine Galvanized Guard Net
Oil Hose Box Single Hole Tube, One Unit On Each Side
Oil Hose 2 Unit,3’ X 6m Size In Black Rubber
Side Guard Cross bar-Structured
Rear Bottom Guard Fixed Type
Work Tank Deck Box Type
Fire Extinguisher Box Two Units At The Back Of Each Side
Mud Guard Steel Structure In Trapezoid Form
Unloading System Gravity fuel unloading
Main Beams Heavy Duty And Extra Durability Designed; Opting For High Tensile Steel Q345B Welded By Automatic Submerged-Arc Processes,
Axle Three Units Of 13 Ton FUWA Axle
Suspension One Couple of Tri- axle Heavy Duty Suspension
Leaf Spring 6 sets of 10 pcs 16*90 leaf springs
Landing Gear Two Speed Manual Operation 28 Ton Landing Gear
King Pin One Unit Of 3.5 ’ SEA Standard Welded King Pin
Wheel Rim 12 units of 9.0*22.5 Wheel Rim
Tyre 12 units of 12R22.5 Tubeless Tyres
Pneumatic Braking System A System With Emergency Brake And Parking Brake;
Dual Line - Air Brake, Piggyback Spring On All Axles;
Two Units Of RE 6 Relay Valve; Six Units Of T30/30 Spring Brake Chamber; Two Units Of 45L Air Tanks; Two Units Of Standard Copper Air-Connector.
Electrical  System One Unit of JAEGER POWAY(or equivalent) ,24V 7-Pin ISO 1185 Standard Socket; Tail Lamp With Turn Signal, Brake Light & Reflector , Side Lamp Etc. One Set Of 6-Core Standard Cable.
Painting Sand Blasting Processing On Rust – Proof Protection..
One Coat Of Anticorrosive Primer
Two Coats Of Finish Urethane Paint
Color As Customer Choice
Accessory One Tool Box
