Flatbed Trailer

Flatbed Container Semi Trailer

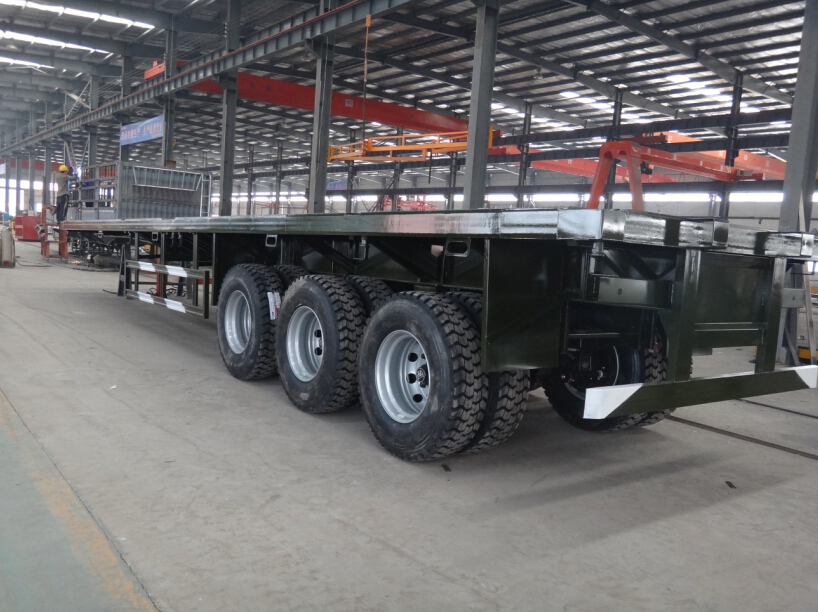

40 ft 3 Axle Flatbed Container Semi Trailer


Vehicke Name Flatbed Container Semi Trailer Model HDJZP9403
Dimension(mm) 12500×2500×1500 Total Weight(Kg) 48000
Dimension(mm) 13000,12500×2300×1500 Rated Payload(Kg) 40000
Leaf Spring -/8/8/8,-/10/10/10,-/4/4/4 Tare Weight(Kg) 8000
Axle Number 3 Approach/Departure 0 -
Wheel Base 6830+1310+1310,6380+1300+1300 Axle Load(kg) -/24000(Tri-axle)
Tyre Number 12 units Front Wheel Track -
Front/Rear suspension(mm) -/2300 Rear Wheel Track 1840/1840/1840
Tyre Size 10.00R20 12PR,11.00R20 12PR,12R22.5 12PR
National Approval 230
Notes: 1)Total vehicel Customized legnth as 13600,13000,12500mm
2)opetional legnth vehicle total weight tolerance ± 3%

 For the specification above, we reserve the right to make any changes without notice.
