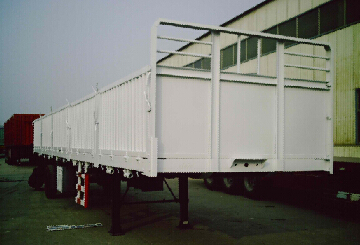

40ft 3 Axle High Wall Semi Trailer
12.5 Meter Tri-Axle High Wall Semi-Trailer Specification
| DIMENSIONS | |
| Tare Weight | 8200kg |
| Payload | 40000kg |
| Total Weight | 48200kg |
| Overall Length | 12500mm |
| Overall Width | 2500mm |
| Overall Height | 2810mm (2313mm @ Dropside part) |
| Wheel Track | 1840mm |
| Wheelbase | 6780mm+1300mm+1300mm |
| STANDARD SPECIFICATION | |
| Main Frame | Heavy duty and extra durability designed; high tensile steel Q345B,welded by automatic Submerged-Arc processes 500mm Height I beam, Top Flange 14mm,width 140mm; Middle Flange 8mm ; Bottom Flange 16mm,width 140mm |
| Floor | Steel Sheet 3mm thickness |
| Axle | Three Units of FUWA 13 Ton Axle |
| Suspension | One couple of Tri-axle Mechanical Suspension |
| Leaf Spring | Six sets of 9-pieces 16x90mm Leaf Spring |
| King Pin | One unit of 2`` SAE standard Welded Kingpin |
| Landing Gear | Two-speed , manual operating, heavy duty Landing Gear |
| Wheel Rim | Twelve units of 9.00-22.5 Wheel Rim |
| Tyre | Twelve units of 12R-22.5 Tubeless Tyres |
| Side Drop Board | 800mm/1000mm/1200mm/1500mm Height Side Board |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
| Pneumatic Braking System | A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; Two units of WABCO RE 4 relay valve(or equivalent); Four units of T30/30 spring brake chamber;Two units of T30 brake chamber, two units of 40L air tanks; two units of standard copper air-connector. |
| Electrical System | One unit of JAEGER POWAY(or equivalent),24V 7-pin ISO 1185 standard socket; Tail lamp with turn signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable. |
| Painting | Sand blasting processing on rust – proof protection.. One coat of anticorrosive primer Two coats of finish urethane paint Color as customer choice |
| Accessory | One tooling box with a set of standard trailer tool |
