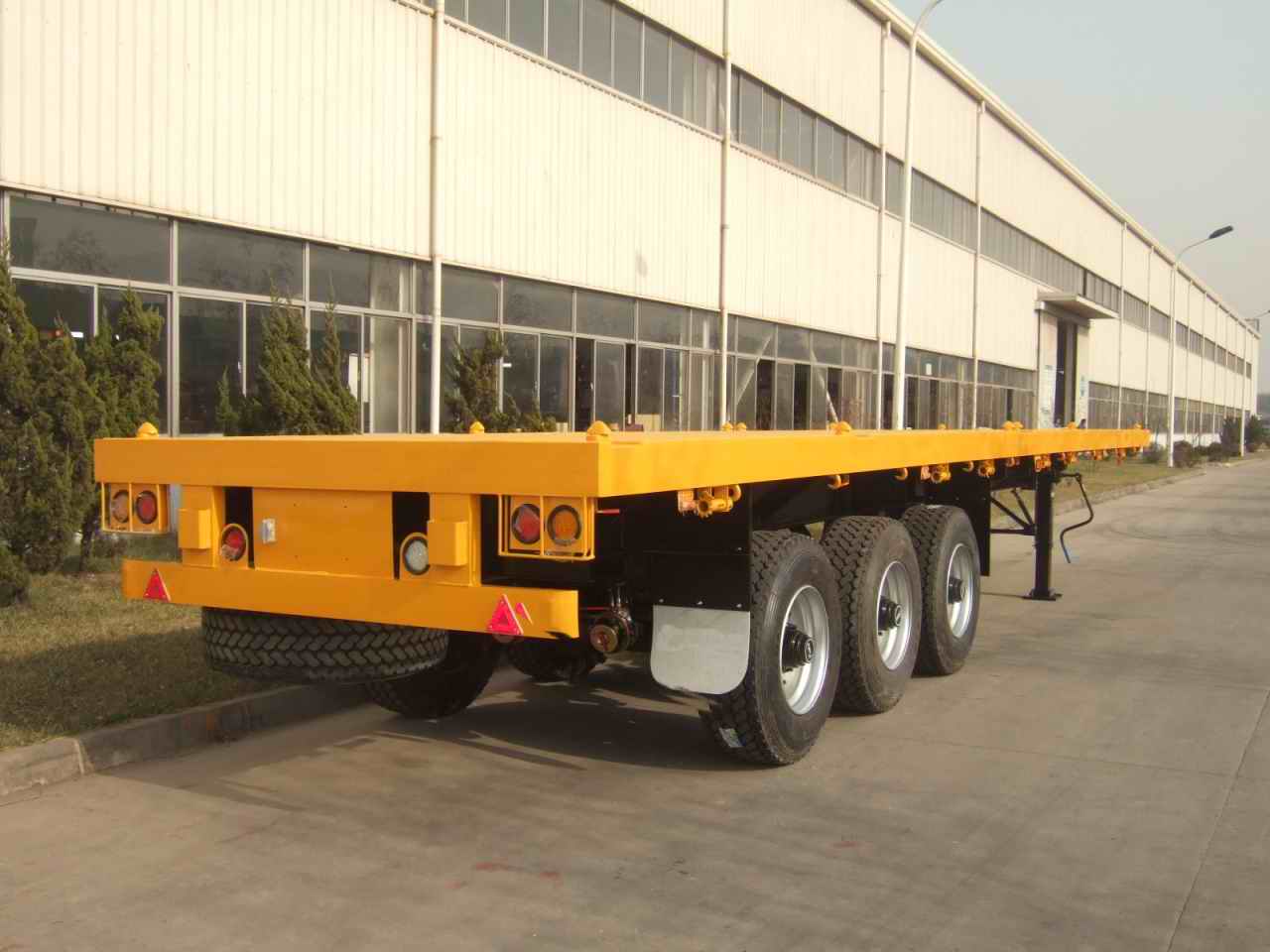

40 ft 3 Axle Flatbed Container Semi Trailer
| Vehicke Name | Flatbed Container Semi Trailer | Model | HDJZP9403 |
| Dimension(mm) | 12500×2500×1500 | Total Weight(Kg) | 48000 |
| Dimension(mm) | 13000，12500×2300×1500 | Rated Payload(Kg) | 40000 |
| Leaf Spring | -/8/8/8,-/10/10/10，-/4/4/4 | Tare Weight(Kg) | 8000 |
| Axle Number | 3 | Approach/Departure 0 | - |
| Wheel Base | 6830+1310+1310,6380+1300+1300 | Axle Load(kg) | -/24000(Tri-axle) |
| Tyre Number | 12 units | Front Wheel Track | - |
| Front/Rear suspension(mm) | -/2300 | Rear Wheel Track | 1840/1840/1840 |
| Tyre Size | 10.00R20 12PR,11.00R20 12PR,12R22.5 12PR | ||
| National Approval | 230 | ||
| Notes: |
1)Total vehicel Customized legnth as 13600,13000,12500mm 2)opetional legnth vehicle total weight tolerance ± 3% |
||
For the specification above, we reserve the right to make any changes without notice.
